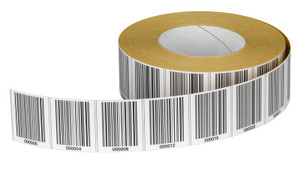

Leuze BCB G40 H25 L030 Bar code tape
Leuze
$550.00
The Leuze BCB G40 H25 L030 is a standard self-adhesive barcode tape designed for high-precision positioning in barcode positioning systems. It features a 40 mm grid dimension, 25 mm tape height, and 30,000 mm length, providing millimeter accuracy over extended distances up to 10 km when used in series. Constructed from durable plastic material resistant to moisture, wear, environmental influences, and many chemicals, it supports easy application along straight lines, curves, and radii. Compatible with Leuze BPS 8 series and BPS 300i series barcode positioning systems, it is ideal for mechanical engineering applications requiring reliable linear position feedback.
Documentation
- Technical Datasheet: https://www.leuze.com/en-int/bcb-g40-h25-l030/50144192
- Product Page: https://www.leuze.com/en-us/products/accessories/bar-code-tapes/standard-tapes
- Installation Guide: https://www.leuze.com/en-int/support/downloads?product=BCB+G40+H25+L030
- CAD Data: https://www.leuze.com/en-int/cad-data/bcb-g40-h25-l030
- Type:
- Standard tape
- Suitable for:
- BPS 300i series bar code positioning system
- Dimension (H x L):
- 25 mm x 30,000 mm
- Grid dimension:
- 40 mm
- Mechanical properties:
- Moisture resistant,Partly chemical resistant,Scratch resistant,UV resistant,Wipe resistant
- Adhesive:
- Acrylate adhesive
- Strength of adhesive:
- 0.1 mm
- Manufacturing process:
- Digital printing
- Chemical resistance (at 23 °C over 24 h):
- Diesel oil,Heptane,Transformer oil,White spirit
- Curing:
- 72 h
- Surface protection:
- Polyester, matt
- Ambient temperature, operation:
- -40 ... 120 °C
- Processing temperature:
- 0 ... 45 °C
- Recommended processing temperature:
- 10 ... 25 °C
- Resistance:
- Humidity,Salt spray fog (150 h/5 %),UV light
- Temperature resistance:
- -40 ... 120 °C
- Property of base:
- Clean,Dry,Free of grease,Smooth
- Customs tariff number:
- 48211010
- ECLASS 5.1.4:
- 27280190
- ECLASS 8.0:
- 27280190
- ECLASS 9.0:
- 27280192
- ECLASS 10.0:
- 27280192
- ECLASS 11.0:
- 27280192
- ECLASS 12.0:
- 27280192
- ECLASS 13.0:
- 27280192
- ECLASS 14.0:
- 27280192
- ECLASS 15.0:
- 27280192
- ETIM 5.0:
- EC002498
- ETIM 6.0:
- EC003015
- ETIM 7.0:
- EC003015
- ETIM 8.0:
- EC003015
- ETIM 9.0:
- EC003015
- ETIM 10.0:
- EC003015
- Datasheet:
- View
