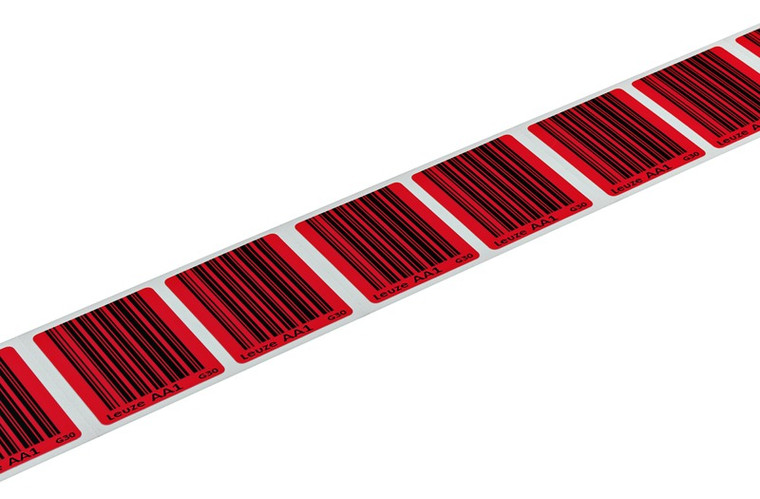

Leuze BCB G40 H47 ML A Marker labels
Leuze
$199.00
Leuze BCB G40 H47 ML A marker labels feature dimensions of 47 mm x 40 mm with a 40 mm grid dimension and AA1 encoding for reliable identification in automated systems. These labels utilize acrylate adhesive (0.1 mm strength) on a clean, dry, grease-free, smooth base, with polyester matt surface protection, offering moisture, partial chemical (diesel oil, heptane, transformer oil, white spirit), scratch, UV, and wipe resistance. They operate across -40 to 120 °C ambient temperature, with processing from 0 to 45 °C (recommended 10 to 25 °C) and 72-hour curing time, suitable for harsh industrial environments including humidity and salt spray exposure (150 h/5%).
Documentation
- Technical Datasheet: https://www.leuze.com/en-us/bcb-g40-h47-ml-a/50144236
- Product Data Sheet (PDF): https://pim.galco.com/Manufacturer/Leuze/TechDocument/Data%20Sheet/DS_BCB-G40-H47-ML-A_eng_50144236.pdf
- BCB Series Catalog: https://www.leuze.com/en-us/products/identification/bar-code-labels/bcb
- CAD Data: https://www.leuze.com/en-us/bcb-g40-h47-ml-a/50144236/cad
- Type:
- Marker labels
- Dimension (H x L):
- 47 mm x 40 mm
- Grid dimension:
- 40 mm
- Encoding:
- AA1
- Mechanical properties:
- Moisture resistant,Partly chemical resistant,Scratch resistant,UV resistant,Wipe resistant
- Adhesive:
- Acrylate adhesive
- Strength of adhesive:
- 0.1 mm
- Manufacturing process:
- Digital printing
- Chemical resistance (at 23 °C over 24 h):
- Diesel oil,Heptane,Transformer oil,White spirit
- Curing:
- 72 h
- Surface protection:
- Polyester, matt
- Ambient temperature, operation:
- -40 ... 120 °C
- Processing temperature:
- 0 ... 45 °C
- Recommended processing temperature:
- 10 ... 25 °C
- Resistance:
- Humidity,Salt spray fog (150 h/5 %),UV light
- Temperature resistance:
- -40 ... 120 °C
- Property of base:
- Clean,Dry,Free of grease,Smooth
- Customs tariff number:
- 48211010
- ECLASS 5.1.4:
- 27280190
- ECLASS 8.0:
- 27280190
- ECLASS 9.0:
- 27280192
- ECLASS 10.0:
- 27280192
- ECLASS 11.0:
- 27280192
- ECLASS 12.0:
- 27280192
- ECLASS 13.0:
- 27280192
- ECLASS 14.0:
- 27280192
- ECLASS 15.0:
- 27280192
- ETIM 5.0:
- EC002498
- ETIM 6.0:
- EC003015
- ETIM 7.0:
- EC003015
- ETIM 8.0:
- EC003015
- ETIM 9.0:
- EC003015
- ETIM 10.0:
- EC003015
- Datasheet:
- View
