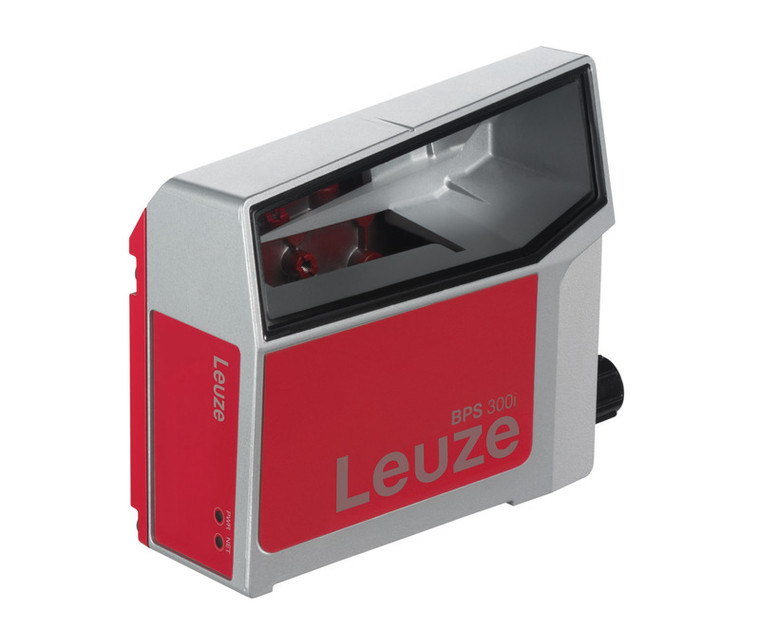

Leuze BPS 358i SM 100 Bar code positioning system
Leuze
$2,797.00
The Leuze BPS 358i SM 100 is a bar code positioning system designed for high-precision linear position measurement using adhesive bar code tape, suitable for dynamic applications in automation and manufacturing. It features a lateral light beam exit with a depth of field from 50 to 170 mm, measurement range up to 10,000,000 mm, resolution from 0.001 to 10 mm, and reproducibility of 0.05 mm (1 sigma), supporting max traverse rates of 10 m/s with 2 ms measurement output. Electrical specifications include 18-30 V DC supply (max 3.7 W consumption), 2 selectable inputs/outputs (max 60 mA output, 8 mA input), PROFINET RT interface (conformance class B, up to 100 Mbit/s with integrated switch), and M12 connectors; the die-cast aluminum housing measures 100 x 108.7 x 48.3 mm and weighs 580 g, with polarity reversal and short-circuit protection. Typical applications include crane positioning, storage retrieval systems, and high-speed conveyors requiring absolute positioning without encoders.
Documentation
- Technical Datasheet: https://www.leuze.com/en-us/bps-358i-sm-100/50152290/datasheet
- Operating Instructions: https://www.leuze.com/en-us/bps-358i-sm-100/50152290/operating-instructions
- Product Page: https://www.leuze.com/en-us/bps-358i-sm-100/50152290
- CAD Data: https://www.leuze.com/en-us/bps-358i-sm-100/50152290/cad
- Series:
- BPS 300i
- MTTF:
- 83 years
- Depth of field:
- 50 ... 170 mm
- Light source:
- Laser, Red
- Laser class:
- 1, in accordance with IEC 60825-1:2014 (EN 60825-1:2014)
- Transmitted-signal shape:
- Continuous
- Light beam exit:
- Lateral
- Measurement range:
- 0 ... 10,000,000 mm
- Reproducibility (1 sigma):
- 0.05 mm
- Measurement value output:
- 2 ms
- Max. traverse rate:
- 10 m/s
- Supply voltage UB:
- 18 ... 30 V, DC
- Power consumption, max.:
- 3.7 W
- Number of inputs/outputs selectable:
- 2 Piece(s)
- Switching element:
- Transistor, PNP
- Type:
- EtherNet IP
- Address assignment:
- DHCP,Manual address assignment
- Function:
- Process
- Switch functionality:
- Integrated
- Transmission speed:
- 10 Mbit/s,100 Mbit/s
- Type:
- USB
- Function:
- Configuration/parameterization via integrated web server,Service
- Design:
- Cubic
- Dimension (W x H x L):
- 100 mm x 108.7 mm x 48.3 mm
- Housing material:
- Metal
- Lens cover material:
- Glass
- Net weight:
- 580 g
- Type of fastening:
- Dovetail grooves,Fastening on back,Via optional mounting device
- Type of display:
- LED
- Ambient temperature, operation:
- -5 ... 50 °C
- Ambient temperature, storage:
- -35 ... 70 °C
- Relative humidity (non-condensing):
- 90 %
- Degree of protection:
- IP 65, EN 60529 with various connectors or screwed-on caps
- Protection class:
- III
- Approvals:
- c UL US
- Test procedure for EMC in accordance with standard:
- EN 61000-6-2,EN 61000-6-3
- Test procedure for shock in accordance with standard:
- IEC 60068-2-27, test Ea
- Test procedure for continuous shock in accordance with standard:
- IEC 60068-2-29, test Eb
- Test procedure for vibration in accordance with standard:
- IEC 60068-2-6, test Fc
- Customs tariff number:
- 84719000
- ECLASS 5.1.4:
- 27280190
- ECLASS 8.0:
- 27280190
- ECLASS 9.0:
- 27280190
- ECLASS 10.0:
- 27280190
- ECLASS 11.0:
- 27280190
- ECLASS 12.0:
- 27280106
- ECLASS 13.0:
- 27280106
- ECLASS 14.0:
- 27280106
- ECLASS 15.0:
- 27280106
- ETIM 5.0:
- EC001825
- ETIM 6.0:
- EC001825
- ETIM 7.0:
- EC001825
- ETIM 8.0:
- EC001825
- ETIM 9.0:
- EC001825
- ETIM 10.0:
- EC001825
