Leuze BTK IL BA 023 Mounting device
Leuze
$451.00

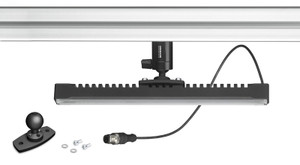

The Leuze BTK IL BA 023 is an aluminum mounting device designed for secure installation of industrial image processing illumination units, specifically compatible with the IL AL 023/096 RD 301 series. It features screw-type fastening at the system side and a spherical head at the device side, enabling precise angular adjustments and robust mechanical fixation in demanding manufacturing environments. With a net weight of 73 g, it suits applications requiring lightweight yet durable mounting solutions for vision systems.
Documentation
- Technical Datasheet: https://www.leuze.com/en-int/btk-il-ba-023/50148129
- Product Data Sheet (PDF): https://pim.galco.com/Manufacturer/Leuze/TechDocument/Data%20Sheet/DS_BTK-IL-BA-023_eng_50148129.pdf
- Mounting Systems Overview: https://www.leuze.com/en-int/products/accessories/mounting-systems
- Dimensioned Drawings: https://www.leuze.com/en-int/btk-il-ba-023/50148129downloads
- Suitable for product group:
- Industrial image processing
- Suitable for:
- Illumination IL AL 023/096 RD 301
- Type of fastening, at system:
- Screw type
- Type of fastening, at device:
- Spherical head
- Mounting device material:
- Aluminum
- Customs tariff number:
- 76169990
- ECLASS 5.1.4:
- 27279202
- ECLASS 8.0:
- 27279202
- ECLASS 9.0:
- 27273701
- ECLASS 10.0:
- 27273701
- ECLASS 11.0:
- 27273701
- ECLASS 12.0:
- 27273701
- ECLASS 13.0:
- 27273701
- ECLASS 14.0:
- 27273701
- ECLASS 15.0:
- 27273701
- ETIM 5.0:
- EC002498
- ETIM 6.0:
- EC003015
- ETIM 7.0:
- EC003015
- ETIM 8.0:
- EC003015
- ETIM 9.0:
- EC003015
- ETIM 10.0:
- EC003015
- Datasheet:
- View
