Leuze BTK IVS 1048 Mounting device
Leuze
$441.00
The Leuze BTK IVS 1048 is a precision mounting device (part no. 50149698) designed for secure installation of IVS 1000i and DCR industrial vision sensors. It features a screw-type fastening at the system side and a spherical head mounting bracket at the device side, constructed from aluminum for durability and corrosion resistance. This configuration enables precise angular adjustments and stable positioning in demanding manufacturing environments, such as automation lines requiring reliable sensor alignment.
Documentation
- Technical Datasheet: https://www.leuze.com/en-us/btk-ivs-1048/50149698downloads

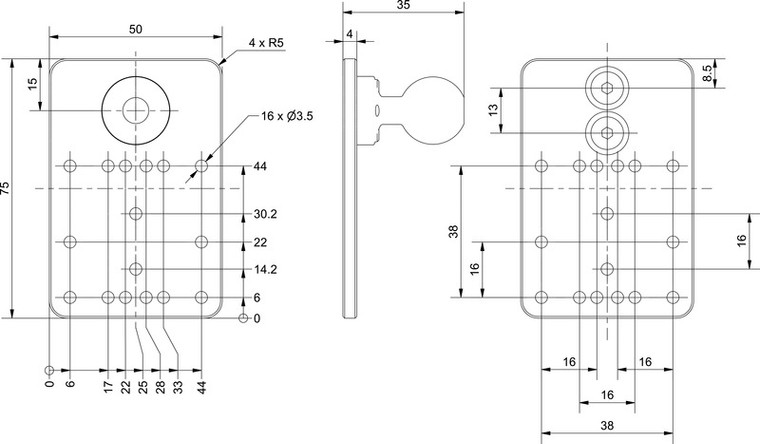

- Dimensioned Drawings: https://pim.galco.com/Manufacturer/Leuze/TechDocument/Data%20Sheet/DS_BTK-IVS-1048_eng_50149698.pdf
- Mounting Systems Overview: https://www.leuze.com/en-us/products/accessories/mounting-systems
- Product Family Page: https://www.leuze.com/en-us/btk-ivs-1048/50149698
- Suitable for product group:
- Industrial image processing
- Suitable for:
- DCR 1048i,IVS 1048i
- Type of fastening, at system:
- Screw type
- Type of fastening, at device:
- Spherical head
- Mounting device material:
- Aluminum
- Customs tariff number:
- 76169990
- ECLASS 5.1.4:
- 27279202
- ECLASS 8.0:
- 27279202
- ECLASS 9.0:
- 27273701
- ECLASS 10.0:
- 27273701
- ECLASS 11.0:
- 27273701
- ECLASS 12.0:
- 27273701
- ECLASS 13.0:
- 27273701
- ECLASS 14.0:
- 27273701
- ECLASS 15.0:
- 27273701
- ETIM 5.0:
- EC002498
- ETIM 6.0:
- EC003015
- ETIM 7.0:
- EC003015
- ETIM 8.0:
- EC003015
- ETIM 9.0:
- EC003015
- ETIM 10.0:
- EC003015
- Datasheet:
- View
