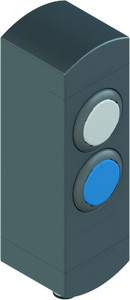

Leuze CD-B3-Z-C01 Command device
Leuze
$534.00
The Leuze CD-B3-Z-C01 is a command device designed for position-dependent emergency stop (E-Stop) command input, ensuring precise safety signaling in machine guarding applications. It features dimensions identical to the L250 series locking devices (40 mm x 40 mm x 191.5 mm) with a glass fiber reinforced, self-extinguishing, shock-resistant plastic housing for robust mechanical performance in industrial environments. Suitable for integration into safety interlock systems, it supports typical applications in manufacturing and automation where position-aware E-Stop functionality is required.
Documentation
- Technical Datasheet: https://www.leuze.com/en-us/cd-b3-z-c01/50149357
- Product Data Sheet (PDF): https://pim.galco.com/Manufacturer/Leuze/TechDocument/Data%20Sheet/DS_CD-B3-Z-C01_eng_50149357.pdf
- Safety Locking Device Datasheet (Related): https://pim.galco.com/Manufacturer/Leuze/TechDocument/Data%20Sheet/DSL250P31SLCB02M12S8SCAeng50142120.pdf
- Product Page: https://www.leuze.com/en-in/cd-b3-z-c01/50149357
- Type:
- Display/command device (not safe), E?Stop command device in accordance with EN ISO 13850, EN 60947-5-5
- Functions:
- Dimensions and design identical to L250 series locking devices,Position-dependent E-Stop command input,Protected screw fitting,Reset function (via rotary knob, for E-Stop button)
- Category:
- Up to incl. 4 (depending on wiring) (E-Stop), EN ISO 13849
- Contact allocation:
- 2NC + 2NO
- Switching current via button:
- 0 ... 550 mA
- Current load, max.:
- 1 A
- Supply voltage UB:
- 24 V, DC, 10 %
- Current consumption, max.:
- 12 mA, LED
- Rated insulation voltage:
- 1.5 kV AC/DC
- Number of connections:
- 1 Piece(s)
- Function:
- Contact connection
- Type of connection:
- Connector
- Thread size:
- M12
- Type:
- Male
- Material:
- Stainless steel
- No. of pins:
- 12 -pin
- Dimension (W x H x L):
- 40 mm x 40 mm x 191.5 mm
- Housing material:
- Plastic
- Plastic housing:
- Glass fiber reinforced, self-extinguishing, shock-resistant
- Net weight:
- 311 g
- Housing color:
- Gray
- Type of fastening:
- Through-hole mounting,Wall mounting
- Type of cable entry:
- M12
- Switch type:
- E-Stop command device, EN ISO 13850
- Mechanical life time:
- 500,000 actuation cycles, IEC 60947-5-1
- Type of actuation:
- Button, white/button, blue/E-Stop button, red
- Type of unlocking:
- Rotary release
- Sensor material:
- Plastic
- Type of display:
- Continuous light,LED
- Operational controls:
- 1 E-Off switch,2 command devices (blue pushbutton, white pushbutton)
- Ambient temperature, operation:
- -25 ... 70 °C
- Ambient temperature, storage:
- -25 ... 70 °C
- Degree of protection:
- IP 65
- Protection class:
- III
- Customs tariff number:
- 85369095
- ECLASS 5.1.4:
- 27279290
- ECLASS 8.0:
- 27279290
- ECLASS 9.0:
- 27279090
- ECLASS 10.0:
- 27371246
- ECLASS 11.0:
- 27371246
- ECLASS 12.0:
- 27371246
- ECLASS 13.0:
- 27371246
- ECLASS 14.0:
- 27371246
- ECLASS 15.0:
- 27371246
- ETIM 5.0:
- EC002498
- ETIM 6.0:
- EC003015
- ETIM 7.0:
- EC003015
- ETIM 8.0:
- EC003015
- ETIM 9.0:
- EC003015
- ETIM 10.0:
- EC003015
