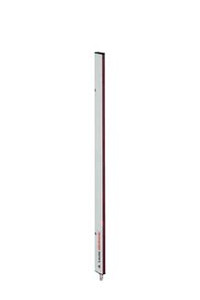

Leuze CSL505-R12.5-88-VB-M8 Industrial Sensor System
Leuze
$506.00
The CSL505-R12.5-88-VB-M8 is a precision industrial sensor engineered for demanding automation applications. Featuring IP65 protection and wide operating temperature range, it delivers reliable performance in manufacturing, logistics, and process control environments.
Technical Specifications:
Protection rating: IP65 (dust-protected, water-resistant)
Supply voltage: 18...30 V DC with reverse polarity protection
Operating temperature: -30...50 °C (extended cold storage rating)
Connection: M8 quick-disconnect connector
Technical Documentation:
Complete technical specifications, dimensional drawings, wiring diagrams, and safety documentation are available on the Leuze website at https://www.leuze.com/en-us/usa/products (search model CSL505-R12.5-88-VB-M8). CAD models in STEP and EPLAN formats available for download to streamline machine design and panel layout.
- Series:
- 505
- Operating principle:
- Throughbeam principle
- Device type:
- Receiver
- Application:
- Precise object detection
- Special version:
- Crossed-beam scanning,Diagonal-beam scanning,Parallel-beam scanning,Teach input,Warning output
- Operating range:
- 0.3 ... 5 m
- Operating range:
- Guaranteed operating range
- Measurement field length:
- 87.5 mm
- Number of beams:
- 8 Piece(s)
- Beam spacing:
- 12.5 mm
- Minimum object diameter:
- 15 mm
- Protective circuit:
- Inductive protection,Polarity reversal protection,Short circuit protected
- Supply voltage UB:
- 18 ... 30 V, DC
- Number of digital switching outputs:
- 2 Piece(s)
- Type:
- Digital switching output
- Voltage type:
- DC
- Switching current, max.:
- 150 mA
- Cycle time:
- 12 ms
- Response time per beam:
- 1,000 µs
- Number of connections:
- 1 Piece(s)
- Function:
- Signal OUT,Teach input,Voltage supply
- Type of connection:
- Connector
- Thread size:
- M8
- Type:
- Male
- Material:
- Metal
- No. of pins:
- 4 -pin
- Encoding:
- A-coded
- Design:
- Cubic
- Dimension (W x H x L):
- 10 mm x 27 mm x 260 mm
- Housing material:
- Metal
- Metal housing:
- Aluminum
- Lens cover material:
- Plastic
- Housing color:
- Silver
- Type of fastening:
- Through-hole mounting
- Type of display:
- LED
- Number of LEDs:
- 2 Piece(s)
- Type of configuration:
- Software,Via pin assignment
- Ambient temperature, operation:
- -30 ... 50 °C
- Ambient temperature, storage:
- -40 ... 65 °C
- Degree of protection:
- IP 65
- Protection class:
- III
- Standards applied:
- EN 60947-5-2 (German version)
- Customs tariff number:
- 90314990
- ECLASS 5.1.4:
- 27270910
- ECLASS 8.0:
- 27270910
- ECLASS 9.0:
- 27270910
- ECLASS 10.0:
- 27270910
- ECLASS 11.0:
- 27270910
- ECLASS 12.0:
- 27270910
- ECLASS 13.0:
- 27270910
- ECLASS 14.0:
- 27270910
- ECLASS 15.0:
- 27270910
- ETIM 5.0:
- EC002549
- ETIM 6.0:
- EC002549
- ETIM 7.0:
- EC002549
- ETIM 8.0:
- EC002549
- ETIM 9.0:
- EC002549
- ETIM 10.0:
- EC002549
