Leuze DCR 202i FIX-F2-102-R3-F001 Stationary 2D-code reader
Leuze
$2,633.00

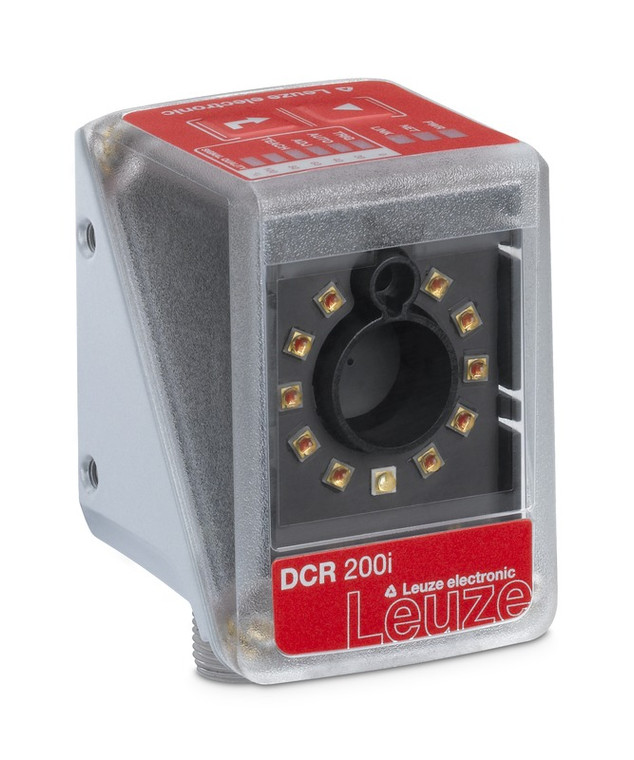

The Leuze DCR 202i FIX-F2-102-R3-F001 is a stationary camera-based 2D code reader from the DCR 200i series, utilizing a CMOS global shutter imager for reliable decoding of 1D and 2D codes including EAN 8/13, Code 128, DataMatrix, Aztec, and GS1 Databar at reading distances of 70360 mm. It features integrated red LED illumination, a green feedback LED, and four programmable MOSFET switching inputs/outputs, with M12 connectors (A-coded 12-pin for power/RS232/RS422/SWIO, D-coded 4-pin for Ethernet) supporting industrial protocols like PROFINET and EtherNet/IP. The IP65-rated housing (IP67/69K optional with stainless steel) includes M4 mounting threads on rear and side surfaces, two control buttons, bar graph display for read quality, and webConfig tool for parameter setup without additional software.
Documentation
- Technical Datasheet: https://www.leuze.com/en-us/dcr-202i-fix-f2-102-r3-f001/50141236 (Datasheet for part no. 50141236)
- User Manual: https://www.leuze.com/en-us/support/downloads/manuals/dcr-200i-series
- Product Page: https://www.leuze.com/en-us/products/identification/stationary-1d-2d-code-readers/compact-scanner/dcr-202i-fix-f2-102-r3-f001
- CAD Data: https://www.leuze.com/en-us/support/downloads/cad/dcr-202i-fix-f2-102-r3-f001
- Series:
- DCR 200i
- Chip:
- CMOS (Global Shutter)
- Software functions:
- Reading of 1D codes,Reading of 2D codes
- Code types, readable:
- 2/5 Interleaved,Aztec,Codabar,Code 32,Code 39,Code 93,Code 128,Data Matrix Code,EAN 8/13,EAN 128,GS1 Databar,GS1 Databar Omnidirectional,GS1 Databar QR code,GS1 Databar Stacked,PDF417,Pharma Code,QR code,UPC
- Reading distance:
- 70 ... 360 mm
- Light source:
- LED, Red
- Transmitted-signal shape:
- Pulsed
- Camera resolution, horizontal:
- 1,280 px
- Camera resolution, vertical:
- 960 px
- Modulus size:
- 0.19 ... 0.5 mm
- Electronic shutter speed:
- 0.068 ... 5 ms
- Camera type:
- Monochrome
- Protective circuit:
- Polarity reversal protection,Short circuit protected
- Supply voltage UB:
- 18 ... 30 V, DC
- Average power consumption:
- 8 W
- Number of digital switching inputs:
- 2 Piece(s)
- Type:
- Digital switching input
- Switching voltage:
- < 10V high, > 17V low at VIN = 24V
- Switching principle:
- NPN
- Number of digital switching outputs:
- 2 Piece(s)
- Type:
- Digital switching output
- Switching current, max.:
- 100 mA
- Type:
- Ethernet, RS 232, RS 422
- Data bit:
- 8
- Stop bit:
- 1
- Parity:
- None
- Data bit:
- 7, 8 data bits
- Stop bit:
- 1, 2 stop bits
- Parity:
- Adjustable
- Architecture:
- Client,Server
- Address assignment:
- DHCP,Manual address assignment
- Transmission speed:
- 10 Mbit/s,100 Mbit/s
- Switch functionality:
- None
- Transmission protocol:
- TCP/IP , UDP
- Type:
- Ethernet
- Function:
- Service
- Number of connections:
- 2 Piece(s)
- Function:
- Data interface,Signal IN,Signal OUT,Voltage supply
- Type:
- Male
- No. of pins:
- 12 -pin
- Encoding:
- A-coded
- Function:
- Configuration interface,Data interface
- Type:
- Female
- No. of pins:
- 4 -pin
- Encoding:
- D-coded
- Design:
- Cubic
- Dimension (W x H x L):
- 46 mm x 61 mm x 46 mm
- Housing material:
- Metal,Plastic
- Metal housing:
- Diecast aluminum
- Plastic housing:
- PC
- Lens cover material:
- Plastic
- Net weight:
- 392 g
- Housing color:
- Silver
- Type of fastening:
- Mounting thread,Via optional mounting device
- Type of display:
- LED
- Number of LEDs:
- 3 Piece(s)
- Type of configuration:
- Configuration codes,Teach-in,Via web browser
- Ambient temperature, operation:
- 0 ... 50 °C
- Ambient temperature, storage:
- -20 ... 70 °C
- Relative humidity (non-condensing):
- 90 %
- Degree of protection:
- IP 67,IP 69K,EN 60529 with various connectors or screwed-on caps
- Protection class:
- III
- Approvals:
- c UL US
- Test procedure for EMC in accordance with standard:
- EN 61000-6-2,EN 61000-6-4
- Test procedure for continuous shock in accordance with standard:
- IEC 60068-2-29, test Eb
- Test procedure for vibration in accordance with standard:
- IEC 60068-2-6, test Fc
- Customs tariff number:
- 84719000
- ECLASS 5.1.4:
- 27280103
- ECLASS 8.0:
- 27280103
- ECLASS 9.0:
- 27280103
- ECLASS 10.0:
- 27280103
- ECLASS 11.0:
- 27280103
- ECLASS 12.0:
- 27280103
- ECLASS 13.0:
- 27280103
- ECLASS 14.0:
- 27280103
- ECLASS 15.0:
- 27280103
- ETIM 5.0:
- EC002550
- ETIM 6.0:
- EC002999
- ETIM 7.0:
- EC002999
- ETIM 8.0:
- EC002999
- ETIM 9.0:
- EC002999
- ETIM 10.0:
- EC002999
