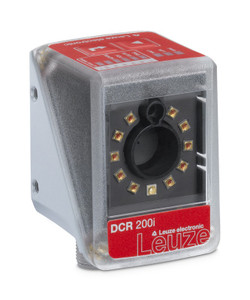

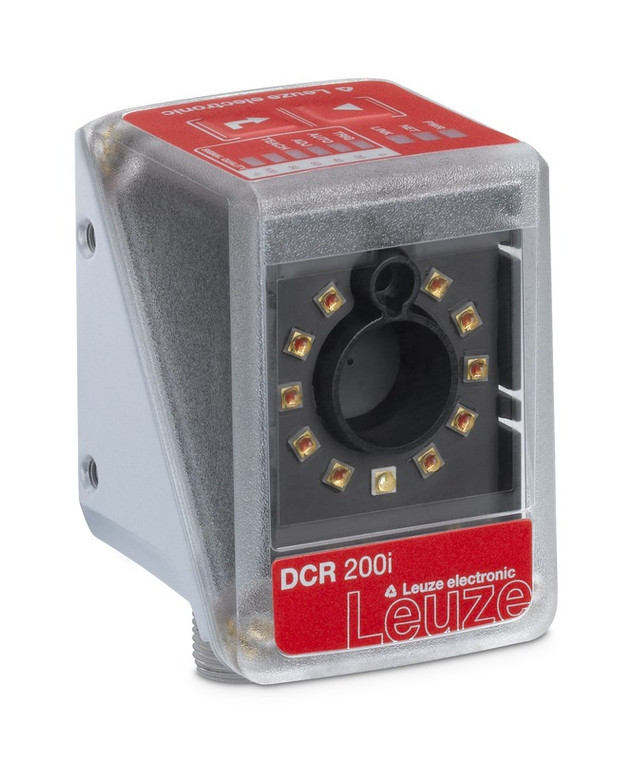

Leuze DCR 202i FIX-L1-102-R3-H Stationary 2D-code reader
Leuze
$3,198.00
The Leuze DCR 202i FIX-L1-102-R3-H is a compact, camera-based stationary 2D-code reader engineered for high-speed industrial barcode and 2D code identification. This device delivers decoding performance of up to 6 m/s with 10 decodings per sequence, accommodating a reading range of 40360 mm, making it suitable for automated production lines and logistics applications. The unit features IP 65 protection with a metal housing, integrated red LED illumination for the read field, and a green feedback LED for successful read acknowledgment.
Connectivity is provided via variously coded M12 connectors: a 12-pin A-coded connector for operating voltage, RS 232/RS 422 serial interface, and four freely programmable switching inputs/outputs; and a 4-pin D-coded connector for Ethernet communication. The device supports multiple industrial protocols including PROFIBUS, PROFINET, and EtherCAT. Configuration is accomplished through an integrated web-based tool (webConfig) requiring no additional software, with an installation wizard for rapid setup. The compact cubic design measures 43 × 61 × 44 mm with M4 mounting threads on rear and side surfaces, and the device includes two control buttons and a six-level bar graph display for intuitive operation and signal quality assessment.
The DCR 202i reads 1D codes (EAN, Code 39, Code 128, Codabar, Interleaved 2/5, and others), stacked codes, and 2D codes (Aztec, Data Matrix, QR Code, PDF417). Integrated teach functions allow automatic adjustment of exposure time, code type selection, and reference code learning. The device includes polarity reversal protection and MOSFET semiconductor switching.
Documentation
- Technical Datasheet: https://www.leuze.com/en-us/dcr-202i-fix-l1-102-r3-h/50149835
- Installation and Configuration Guide: https://www.leuze.com/documents/dcr-202i-installation-guide-en.pdf
- Product Family Overview: https://www.leuze.com/en-us/products/identification/stationary-1d-2d-code-readers
- Connector and Electrical Integration Guide: https://www.leuze.com/documents/dcr-200i-series-electrical-connection-manual-en.pdf
- Series:
- DCR 200i
- Chip:
- CMOS (Global Shutter)
- Special version:
- Heating
- Software functions:
- Reading of 1D codes,Reading of 2D codes
- Code types, readable:
- 2/5 Interleaved,Aztec,Codabar,Code 32,Code 39,Code 93,Code 128,Data Matrix Code,EAN 8/13,EAN 128,GS1 Databar,GS1 Databar Omnidirectional,GS1 Databar QR code,GS1 Databar Stacked,PDF417,Pharma Code,QR code,UPC
- Reading distance:
- 50 ... 800 mm
- Light source:
- LED, Red
- Transmitted-signal shape:
- Pulsed
- Camera resolution, horizontal:
- 1,280 px
- Camera resolution, vertical:
- 960 px
- Modulus size:
- 0.35 ... 1 mm
- Electronic shutter speed:
- 0.068 ... 5 ms
- Camera type:
- Monochrome
- Protective circuit:
- Polarity reversal protection,Short circuit protected
- Supply voltage UB:
- 18 ... 30 V, DC
- Average power consumption:
- 12 W
- Number of digital switching inputs:
- 1 Piece(s)
- Type:
- Digital switching input
- Number of digital switching outputs:
- 1 Piece(s)
- Type:
- Digital switching output
- Switching current, max.:
- 100 mA
- Switching element:
- MOSFET semiconductor
- Switching principle:
- +24 V switching
- Number of inputs/outputs selectable:
- 2 Piece(s)
- Type:
- Inputs/outputs selectable
- Voltage type, outputs:
- DC
- Voltage type, inputs:
- DC
- Type:
- Ethernet, RS 232, RS 422
- Data bit:
- 8
- Stop bit:
- 1
- Parity:
- None
- Data bit:
- 7, 8 data bits
- Stop bit:
- 1, 2 stop bits
- Parity:
- Adjustable
- Transmission protocol:
- Adjustable
- Architecture:
- Client,Server
- Address assignment:
- DHCP,Manual address assignment
- Transmission speed:
- 10 Mbit/s,100 Mbit/s
- Switch functionality:
- None
- Transmission protocol:
- TCP/IP , UDP
- Type:
- Ethernet
- Function:
- Service
- Number of connections:
- 2 Piece(s)
- Function:
- Data interface,Signal IN,Signal OUT,Voltage supply
- Type:
- Male
- No. of pins:
- 12 -pin
- Encoding:
- A-coded
- Function:
- Configuration interface,Data interface
- Type:
- Female
- No. of pins:
- 4 -pin
- Encoding:
- D-coded
- Design:
- Cubic
- Dimension (W x H x L):
- 43 mm x 61 mm x 44 mm
- Housing material:
- Metal,Plastic
- Metal housing:
- Diecast aluminum
- Plastic housing:
- PC
- Lens cover material:
- Plastic
- Net weight:
- 120 g
- Housing color:
- Silver
- Type of fastening:
- Mounting thread,Via optional mounting device
- Type of display:
- LED
- Number of LEDs:
- 10 Piece(s)
- Type of configuration:
- Configuration codes,Teach-in,Via web browser
- Operational controls:
- Button(s)
- Function of the operational control:
- Adjustment mode,Auto-setup,Trigger
- Ambient temperature, operation:
- -30 ... 50 °C
- Ambient temperature, storage:
- -20 ... 70 °C
- Relative humidity (non-condensing):
- 90 %
- Degree of protection:
- IP 65
- Protection class:
- III
- Approvals:
- c UL US
- Test procedure for EMC in accordance with standard:
- EN 61000-6-2,EN 61000-6-4
- Test procedure for continuous shock in accordance with standard:
- IEC 60068-2-29, test Eb
- Test procedure for vibration in accordance with standard:
- IEC 60068-2-6, test Fc
- Customs tariff number:
- 84719000
- ECLASS 5.1.4:
- 27280103
- ECLASS 8.0:
- 27280103
- ECLASS 9.0:
- 27280103
- ECLASS 10.0:
- 27280103
- ECLASS 11.0:
- 27280103
- ECLASS 12.0:
- 27280103
- ECLASS 13.0:
- 27280103
- ECLASS 14.0:
- 27280103
- ECLASS 15.0:
- 27280103
- ETIM 5.0:
- EC002550
- ETIM 6.0:
- EC002999
- ETIM 7.0:
- EC002999
- ETIM 8.0:
- EC002999
- ETIM 9.0:
- EC002999
- ETIM 10.0:
- EC002999
