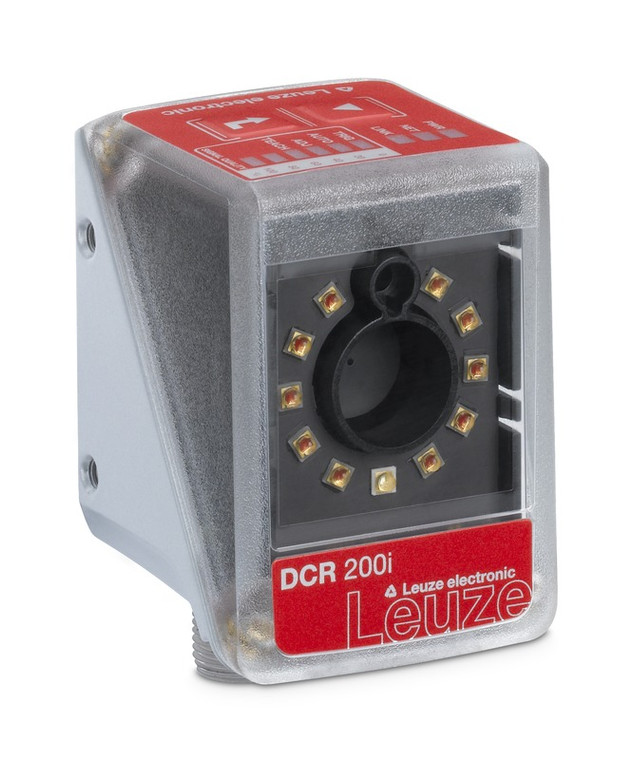

Leuze DCR 248i FIX-M1-102-R3-G Stationary 2D-code reader
Leuze
$3,119.00
Leuze DCR 248i FIX-M1-102-R3-G Stationary 2D-code reader
The DCR 248i FIX-M1-102-R3-G is a stationary 2D-code reader from Leuze's DCR 200i series, engineered for high-speed automated reading of 1D codes, stacked codes, and 2D formats including QR codes and Data Matrix codes. Featuring a CMOS Global Shutter chip, this device delivers reliable decoding performance in industrial environments with a reading distance range of approximately 40360 mm and object speeds up to 7 m/s. The M1 optics configuration provides medium-density reading capability, while the integrated glass pane protects the optical path. The reader features dual LED indicators (red illumination for the read field, green feedback for successful reads), IP 65 protection rating, and diverse mounting options with M12 connections for power, serial communications (RS 232/RS 422), switching I/O, and Ethernet connectivity. Configuration is simplified through the integrated webConfig software tool, eliminating the need for separate configuration applications, and intuitive control buttons enable operation without a PC.
Documentation
- Technical Datasheet: https://www.leuze.com/en-int/dcr-248i-fix-m1-102-r3-g
- Installation and Operating Instructions: https://www.leuze.com/en-int/downloads/dcr-248i-fix-m1-102-r3-g-manual
- Product Family Overview (DCR 200i Series): https://www.leuze.com/en-int/dcr-200i-series
- Electrical and Mechanical Specifications: https://www.leuze.com/en-int/dcr-248i-fix-m1-102-r3-g-specifications
- Series:
- DCR 200i
- Chip:
- CMOS (Global Shutter)
- Software functions:
- Reading of 1D codes,Reading of 2D codes
- Code types, readable:
- 2/5 Interleaved,Aztec,Codabar,Code 32,Code 39,Code 93,Code 128,Data Matrix Code,EAN 8/13,EAN 128,GS1 Databar,GS1 Databar Omnidirectional,GS1 Databar QR code,GS1 Databar Stacked,PDF417,Pharma Code,QR code,UPC
- Reading distance:
- 50 ... 220 mm
- Light source:
- LED, Red
- Transmitted-signal shape:
- Pulsed
- Camera resolution, horizontal:
- 1,280 px
- Camera resolution, vertical:
- 960 px
- Modulus size:
- 0.19 ... 0.5 mm
- Electronic shutter speed:
- 0.068 ... 5 ms
- Camera type:
- Monochrome
- Protective circuit:
- Polarity reversal protection,Short circuit protected
- Supply voltage UB:
- 18 ... 30 V, DC
- Average power consumption:
- 8 W
- Number of digital switching inputs:
- 1 Piece(s)
- Type:
- Digital switching input
- Number of digital switching outputs:
- 1 Piece(s)
- Type:
- Digital switching output
- Switching current, max.:
- 100 mA
- Switching element:
- MOSFET semiconductor
- Switching principle:
- +24 V switching
- Number of inputs/outputs selectable:
- 2 Piece(s)
- Type:
- Inputs/outputs selectable
- Voltage type, outputs:
- DC
- Voltage type, inputs:
- DC
- Type:
- Ethernet, PROFINET, RS 232, RS 422
- Data bit:
- 8
- Stop bit:
- 1
- Parity:
- None
- Data bit:
- 7, 8 data bits
- Stop bit:
- 1, 2 stop bits
- Parity:
- Adjustable
- Architecture:
- Client,Server
- Address assignment:
- DHCP,Manual address assignment
- Transmission speed:
- 10 / 100 Mbit/s
- Switch functionality:
- None
- Transmission protocol:
- TCP/IP , UDP
- Conformance class:
- B
- Protocol:
- PROFINET RT
- Transmission speed:
- 100 Mbit/s
- Type:
- Ethernet
- Function:
- Service
- Number of connections:
- 2 Piece(s)
- Function:
- Data interface,Signal IN,Signal OUT,Voltage supply
- Type:
- Male
- No. of pins:
- 12 -pin
- Encoding:
- A-coded
- Function:
- Configuration interface,Data interface
- Type:
- Female
- No. of pins:
- 4 -pin
- Encoding:
- D-coded
- Design:
- Cubic
- Dimension (W x H x L):
- 43 mm x 61 mm x 44 mm
- Housing material:
- Metal,Plastic
- Metal housing:
- Diecast aluminum
- Plastic housing:
- PC
- Lens cover material:
- Glass
- Net weight:
- 120 g
- Housing color:
- Silver
- Type of fastening:
- Mounting thread,Via optional mounting device
- Type of display:
- LED
- Number of LEDs:
- 10 Piece(s)
- Type of configuration:
- Configuration codes,Teach-in,Via web browser
- Operational controls:
- Button(s)
- Function of the operational control:
- Adjustment mode,Auto-setup,Trigger
- Ambient temperature, operation:
- 0 ... 45 °C
- Ambient temperature, storage:
- -20 ... 70 °C
- Relative humidity (non-condensing):
- 90 %
- Degree of protection:
- IP 65
- Protection class:
- III
- Approvals:
- c UL US
- Test procedure for EMC in accordance with standard:
- EN 61000-6-2,EN 61000-6-4
- Test procedure for continuous shock in accordance with standard:
- IEC 60068-2-29, test Eb
- Test procedure for vibration in accordance with standard:
- IEC 60068-2-6, test Fc
- Customs tariff number:
- 84719000
- ECLASS 5.1.4:
- 27280103
- ECLASS 8.0:
- 27280103
- ECLASS 9.0:
- 27280103
- ECLASS 10.0:
- 27280103
- ECLASS 11.0:
- 27280103
- ECLASS 12.0:
- 27280103
- ECLASS 13.0:
- 27280103
- ECLASS 14.0:
- 27280103
- ECLASS 15.0:
- 27280103
- ETIM 5.0:
- EC002550
- ETIM 6.0:
- EC002999
- ETIM 7.0:
- EC002999
- ETIM 8.0:
- EC002999
- ETIM 9.0:
- EC002999
- ETIM 10.0:
- EC002999
