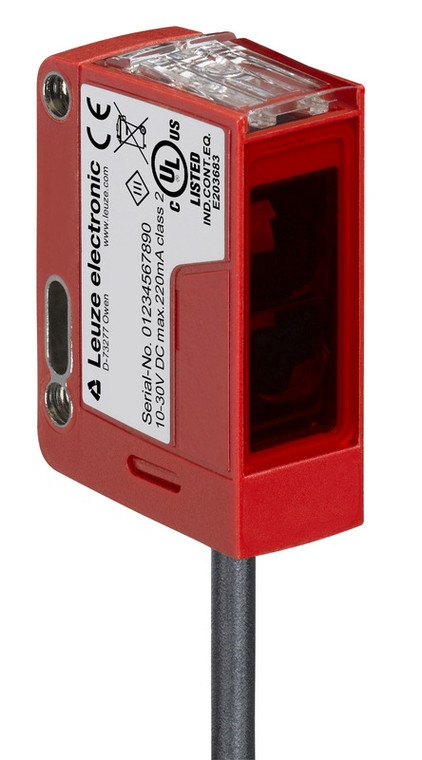

Leuze DRT25C.3R/LT Dynamic reference diffuse sensor
Leuze
$381.84
DRT25C.3R/LT Dynamic reference diffuse sensor
- Series:
- 25C
- Operating principle:
- Reference teach on reference surface (plastic roller chain or plastic link conveyor)
- Application:
- Detection of bottle and can containers
- Special version:
- Teach input
- Operating range:
- 0.08 ... 0.4 m
- Operating range:
- Max. distance to reference surface,,Recommended operating range:
- Operating range limit, white 90%:
- 0.05 ... 0.45 m
- Minimum object height:
- 80 mm
- Light source:
- LED, Red
- Wavelength:
- 645 nm
- LED group:
- Exempt group (in acc. with EN 62471)
- Protective circuit:
- Polarity reversal protection,Short circuit protected
- Supply voltage UB:
- 12 ... 30 V, DC, Incl. residual ripple
- Residual ripple:
- 0 ... 15 %, From UB
- Open-circuit current:
- 0 ... 40 mA
- Number of teach inputs:
- 1 Piece(s)
- Function:
- Keyboard lockout,Setting the teach levels
- Number of digital switching outputs:
- 1 Piece(s)
- Switching element:
- Transistor, Push-pull
- Switching principle:
- IO-Link / light switching (PNP)/dark switching (NPN)
- Switching frequency:
- 300 Hz
- Response time:
- 1.66 ms
- Readiness delay:
- 300 ms
- Type:
- IO-Link
- COM mode:
- COM3
- Min. cycle time:
- COM3 = 0.4 ms
- Specification:
- V1.1
- Device ID:
- 2139
- SIO-mode support:
- Yes
- Function:
- Signal IN,Signal OUT,Voltage supply
- Type of connection:
- Cable
- Cable length:
- 2,000 mm
- Sheathing material:
- PUR
- Cable color:
- Black
- Number of conductors:
- 4 -wire
- Wire cross section:
- 0.2 mm²
- Dimension (W x H x L):
- 15 mm x 42.7 mm x 30 mm
- Housing material:
- Plastic
- Plastic housing:
- ABS
- Lens cover material:
- Plastic
- Net weight:
- 55 g
- Housing color:
- Red
- Type of fastening:
- Through-hole mounting with M4 thread,Via optional mounting device
- Compatibility of materials:
- ECOLAB
- Type of display:
- LED
- Operational controls:
- Teach button
- Function of the operational control:
- Teach-in on reference surface
- Ambient temperature, operation:
- -10 ... 50 °C, Temperature compensation ±15°C
- Ambient temperature, storage:
- -40 ... 70 °C
- Degree of protection:
- IP 67,IP 69K
- Protection class:
- III
- Approvals:
- c UL US
- Standards applied:
- IEC 60947-5-2
- Customs tariff number:
- 85365019
- ECLASS 5.1.4:
- 27270903
- ECLASS 8.0:
- 27270903
- ECLASS 9.0:
- 27270903
- ECLASS 10.0:
- 27270903
- ECLASS 11.0:
- 27270903
- ECLASS 12.0:
- 27270903
- ECLASS 13.0:
- 27270903
- ECLASS 14.0:
- 27270903
- ECLASS 15.0:
- 27270903
- ETIM 5.0:
- EC001821
- ETIM 6.0:
- EC001821
- ETIM 7.0:
- EC001821
- ETIM 8.0:
- EC001821
- ETIM 9.0:
- EC001821
- ETIM 10.0:
- EC001821
