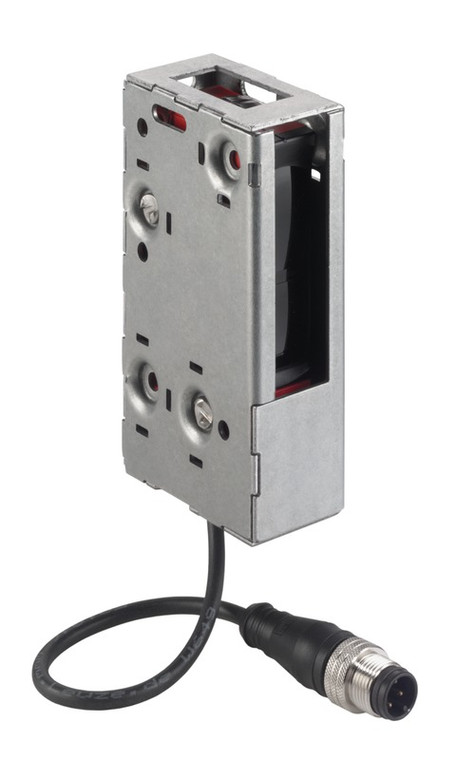

Leuze HRT 46B/4.06,200-S12 Diffuse sensor with background suppression

Leuze
SKU:
HRT 46B/4.06,200-S12
$279.00
(No reviews yet) Write a Review
Condition:
New
Current Stock:
Description
Diffuse sensor with background suppression
Additional Information
Series:
46B
Operating principle:
Diffuse reflection principle with background suppression
Special version:
Ex-protected
Operating range:
Guaranteed operating range
Operating range, white 90%:
0 ... 2.5 m
Operating range, gray 18%:
0.005 ... 1.8 m
Operating range, black 6%:
0.01 ... 1.2 m
Operating range limit:
0 ... 2.5 m
Operating range limit:
Typical operating range
Light source:
LED, Infrared
Type of light spot geometry:
Rectangular
Supply voltage UB:
10 ... 30 V, DC
Number of digital switching outputs:
2 Piece(s)
Switching principle:
Light switching (PNP)/dark switching (NPN)
Switching principle:
Dark switching (PNP)/light switching (NPN)
Switching frequency:
200 Hz
Type of connection:
Cable with connector
Cable length:
200 mm
Thread size:
M12
Material:
Metal
No. of pins:
4 -pin
Dimension (W x H x L):
27.5 mm x 87 mm x 54 mm
Housing material:
Plastic
Plastic housing:
PC-ABS
Lens cover material:
Plastic
Net weight:
250 g
Type of display:
LED
Operational controls:
Multiturn potentiometer
Ambient temperature, operation:
-30 ... 60 °C
Ambient temperature, storage:
-30 ... 60 °C
Ex device category:
3
Ex-Zone:
2,22
Degree of protection:
IP 67
Protection class:
II
Approvals:
Ex
Standards applied:
IEC 60947-5-2
Customs tariff number:
85365019
ECLASS 5.1.4:
27270904
ECLASS 8.0:
27270904
ECLASS 9.0:
27270904
ECLASS 10.0:
27270904
ECLASS 11.0:
27270904
ECLASS 12.0:
27270903
ECLASS 13.0:
27270903
ECLASS 14.0:
27270903
ECLASS 15.0:
27270903
ETIM 5.0:
EC002719
ETIM 6.0:
EC002719
ETIM 7.0:
EC002719
ETIM 8.0:
EC002719
ETIM 9.0:
EC002719
ETIM 10.0:
EC002719
QN-QUOTE-REQUEST:
true
Datasheet:
View
Declaration of Conformity:
View
