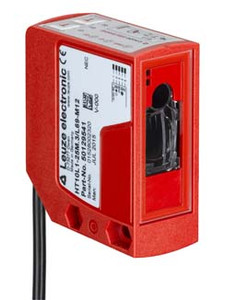

Leuze HT110L1.3/L6T-M12 Diffuse sensor with background suppression
Leuze
$565.88
(No reviews yet)
Write a Review
Write a Review
Leuze
Leuze HT110L1.3/L6T-M12 Diffuse sensor with background suppression
HT110L1.3/L6T-M12 Diffuse sensor with background suppression
- Series:
- 110
- Operating principle:
- Diffuse reflection principle with background suppression
- Application:
- Compartment fine positioning,Danger zone guarding,Push-through protection in pallet warehouse
- Special version:
- 2 independent switching outputs
- Black-white error:
- Black/white shift 6%/90% and gray/white shift 18%/90%: ± 40 mm
- Operating range:
- Guaranteed operating range
- Operating range, white 90%:
- 0 ... 5 m
- Operating range, black 6%:
- 0.05 ... 3 m
- Operating range limit:
- 0 ... 5 m
- Operating range limit:
- Typical operating range
- Adjustment range:
- 60 ... 5,000 mm
- Beam path:
- Collimated
- Light source:
- Laser, Red
- Wavelength:
- 655 nm
- Laser class:
- 1, IEC/EN 60825-1:2007
- Light spot size [at sensor distance]:
- 4 mm x 5 mm [3,000 mm]
- Type of light spot geometry:
- Oval
- Protective circuit:
- Polarity reversal protection,Short circuit protected
- Supply voltage UB:
- 18 ... 30 V, DC
- Residual ripple:
- 15 %, From UB
- Open-circuit current:
- 60 mA
- Switching hysteresis:
- 20 mm
- Number of teach inputs:
- 1 Piece(s)
- Number of digital switching outputs:
- 2 Piece(s)
- Switching principle:
- IO-Link / light switching (PNP)/dark switching (NPN)
- Switching principle:
- Light switching (PNP)/dark switching (NPN)
- Switching frequency:
- 500 Hz
- Response time:
- 1 ms
- Readiness delay:
- 5,000 ms
- Type:
- IO-Link
- COM mode:
- COM2
- Profile:
- Common Profile
- Min. cycle time:
- COM2 = 2.3 ms
- Specification:
- V1.1
- Device ID:
- 0x00087E
- SIO-mode support:
- Yes
- Function:
- Signal IN,Signal OUT,Voltage supply
- Type of connection:
- Connector, Turning, 90°
- Thread size:
- M12
- Type:
- Male
- Material:
- Plastic
- No. of pins:
- 5 -pin
- Encoding:
- A-coded
- Dimension (W x H x L):
- 23 mm x 50 mm x 50 mm
- Housing material:
- Plastic
- Plastic housing:
- ABS
- Lens cover material:
- Plastic / PMMA
- Net weight:
- 42 g
- Housing color:
- Red
- Type of fastening:
- Through-hole mounting,Via optional mounting device
- Type of display:
- LED
- Operational controls:
- Control buttons,PC software
- Function of the operational control:
- Range adjustment
- Ambient temperature, operation:
- -40 ... 60 °C, UL: max. + 45 °C
- Ambient temperature, storage:
- -40 ... 80 °C
- Degree of protection:
- IP 67,IP 69K
- Protection class:
- II
- Approvals:
- c UL US
- Standards applied:
- IEC/EN 60947-5-2
- Customs tariff number:
- 90318080
- ECLASS 5.1.4:
- 27270904
- ECLASS 8.0:
- 27270904
- ECLASS 9.0:
- 27270904
- ECLASS 10.0:
- 27270904
- ECLASS 11.0:
- 27270904
- ECLASS 12.0:
- 27270903
- ECLASS 13.0:
- 27270903
- ECLASS 14.0:
- 27270903
- ECLASS 15.0:
- 27270903
- ETIM 5.0:
- EC002719
- ETIM 6.0:
- EC002719
- ETIM 7.0:
- EC002719
- ETIM 8.0:
- EC002719
- ETIM 9.0:
- EC002719
- ETIM 10.0:
- EC002719
- Datasheet:
- View
- Brochure:
- View
- Declaration of Conformity:
- View
