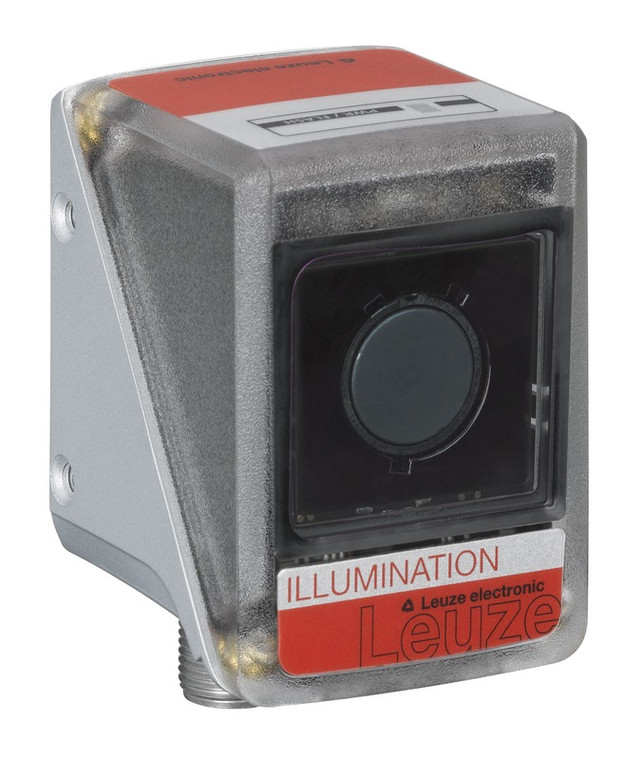

IL AL 034/031 IR 110 H Illumination
- Type:
- LED surface illumination
- Suitable for:
- DCR 200i,IPS 200i,IPS 400i
- Special version:
- Heating
- Functions:
- Strobed operation (edge-triggered), no continuous operation
- Flash frequency, max.:
- 25 Hz
- Illumination duration, max. (flash time) tB:
- 4 ms
- Light source:
- LED,LED,Infrared
- Wavelength:
- 850 nm
- Transmitted-signal shape:
- Pulsed
- LED group:
- Exempt group (in acc. with EN 62471)
- Opening angle, max.:
- 38 °
- Protective circuit:
- Polarity reversal protection,Short circuit protected
- Supply voltage UB:
- 18 ... 30 V, DC
- Power consumption, max.:
- 5 W, (heating inactive) / 9 W, (heating active)
- Number of activation inputs:
- 1 Piece(s)
- Type:
- Activation input
- Voltage type:
- DC
- Switching voltage:
- high: ?12V (LED on),low: ? 8 V (LED off)
- Activation delay:
- 0.03 ms
- Number of connections:
- 2 Piece(s)
- Type:
- Male
- Type:
- Female
- Design:
- Cubic
- Dimension (W x H x L):
- 43 mm x 61 mm x 44 mm
- Housing material:
- Metal,Plastic
- Metal housing:
- Diecast aluminum
- Plastic housing:
- PC
- Lens cover material:
- Glass
- Net weight:
- 131 g
- Housing color:
- Silver
- Type of fastening:
- Mounting thread,Via optional mounting device
- Type of display:
- LED
- Number of LEDs:
- 1 Piece(s)
- Ambient temperature, operation:
- -30 ... 45 °C
- Ambient temperature, storage:
- -20 ... 70 °C
- Relative humidity (non-condensing):
- 90 %
- Degree of protection:
- IP 65
- Protection class:
- III
- Test procedure for EMC in accordance with standard:
- EN 61000-6-2,EN 61000-6-4
- Test procedure for continuous shock in accordance with standard:
- IEC 60068-2-29, test Eb
- Test procedure for vibration in accordance with standard:
- IEC 60068-2-6, test Fc
- Customs tariff number:
- 85395100
- ECLASS 5.1.4:
- 27310204
- ECLASS 8.0:
- 27310204
- ECLASS 9.0:
- 27310204
- ECLASS 10.0:
- 27310204
- ECLASS 11.0:
- 27310204
- ECLASS 12.0:
- 27310204
- ECLASS 13.0:
- 27310204
- ECLASS 14.0:
- 27310204
- ECLASS 15.0:
- 27310204
- ETIM 5.0:
- EC002498
- ETIM 6.0:
- EC003015
- ETIM 7.0:
- EC003015
- ETIM 8.0:
- EC003015
- ETIM 9.0:
- EC003015
- ETIM 10.0:
- EC003015
