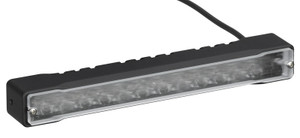

Leuze IL BA 012/130 RD 301 L D Industrial Sensor System
Leuze
$517.00
The IL BA 012/130 RD 301 L D is a precision industrial sensor engineered for demanding automation applications. Featuring IP40 protection and wide operating temperature range, it delivers reliable performance in manufacturing, logistics, and process control environments.
Technical Specifications:
Light source: LED, red emission
Protection rating: IP40
Operating temperature: 0...40 °C
Technical Documentation:
Complete technical specifications, dimensional drawings, wiring diagrams, and safety documentation are available on the Leuze website at https://www.leuze.com/en-us/usa/products (search model IL BA 012/130 RD 301 L D). CAD models in STEP and EPLAN formats available for download to streamline machine design and panel layout.
- Type:
- LED bar lighting with switchable constant light
- Suitable for:
- DCR 1048i,IVS 1048i
- Special version:
- Protective cover, lenticular
- Functions:
- Continuous operation
- Light source:
- LED, Red
- Wavelength:
- 446 nm
- Transmitted-signal shape:
- Continuous
- LED group:
- 1
- Opening angle, max.:
- 18 °
- Supply voltage UB:
- 24 V, DC
- Power consumption, max.:
- 6 W, at 24 V DC
- Function:
- Voltage supply
- Type of connection:
- Cable with connector
- Thread size:
- M12
- Type:
- Male
- Material:
- Metal
- No. of pins:
- 3 -pin
- Encoding:
- A-coded
- Design:
- Cubic
- Dimension (W x H x L):
- 23.1 mm x 18 mm x 144 mm
- Housing material:
- Metal
- Metal housing:
- Aluminium, anodized
- Plastic housing:
- PC
- Lens cover material:
- Plastic/PC
- Net weight:
- 105 g
- Housing color:
- Black
- Type of fastening:
- Mounting thread,Via optional mounting device
- Ambient temperature, operation:
- 0 ... 40 °C
- Ambient temperature, storage:
- -20 ... 40 °C
- Relative humidity (non-condensing):
- 90 %
- Degree of protection:
- IP 40
- Protection class:
- III
- Approvals:
- c UL US
- Test procedure for continuous shock in accordance with standard:
- IEC 60068-2-29, test Eb
- Test procedure for vibration in accordance with standard:
- IEC 60068-2-6, test Fc
- Customs tariff number:
- 85395100
- ECLASS 5.1.4:
- 27310204
- ECLASS 8.0:
- 27310204
- ECLASS 9.0:
- 27310204
- ECLASS 10.0:
- 27310204
- ECLASS 11.0:
- 27310204
- ECLASS 12.0:
- 27310204
- ECLASS 13.0:
- 27310204
- ECLASS 14.0:
- 27310204
- ECLASS 15.0:
- 27310204
- ETIM 5.0:
- EC002498
- ETIM 6.0:
- EC003015
- ETIM 7.0:
- EC003015
- ETIM 8.0:
- EC003015
- ETIM 9.0:
- EC003015
- ETIM 10.0:
- EC003015
- Datasheet:
- View
