Leuze L300-B2-M41C3-SLM24-UCA Safety locking device
Leuze
$1,547.67
(No reviews yet)
Write a Review
Write a Review
Leuze

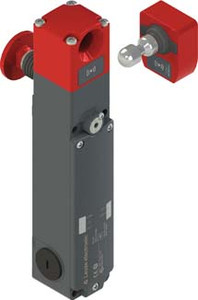

Leuze L300-B2-M41C3-SLM24-UCA Safety locking device
L300-B2-M41C3-SLM24-UCA Safety locking device
- Series:
- L300-B2
- Contains:
- 1x actuator,1x safety locking device
- Functions:
- Locking device with guard interlocking in acc. with EN ISO 14119 (type 4)
- Activation mode of safety outputs:
- Safety outputs active if safety door is closed and locked
- Operating principle:
- Quiescent current principle Actuator locked if electromagnet is deactivated
- SIL:
- 3, IEC 61508
- SILCL:
- 3, IEC/EN 62061
- Performance Level (PL):
- Up to and including e, EN ISO 13849-1
- MTTFd:
- 2,968 years, EN ISO 13849-1
- PFHD:
- 1.15E-9 per hour
- Mission time:
- 20 years, EN ISO 13849-1
- Category:
- 4, EN ISO 13849-1
- DC:
- High
- Encoding level:
- High, EN ISO 14119
- Type of wiring:
- Series connection,Single connection
- External safeguarding for supply circuit:
- 2A type Gg (or equivalent)
- Supply voltage UB:
- 24 V, DC, -10 ... 10 %
- Current consumption, max.:
- 1,200 mA
- Number of safety-related switching inputs:
- 2 Piece(s)
- Number of digital switching inputs:
- 3 Piece(s)
- Type:
- Digital switching input
- Teach input for actuator:
- Yes
- Function:
- IE1 activation input: electromagnet
- Function:
- IE2 activation input: electromagnet
- Function:
- I3 programming input / control input for reset
- Type:
- Safety switching input
- Number of safety-related switching outputs (OSSDs):
- 2 Piece(s)
- Number of digital switching outputs:
- 2 Piece(s)
- Type:
- Safety-related switching output OSSD
- Type:
- Digital switching output
- Function:
- O3 signal output: protective-device closed
- Function:
- O4 signal output: protective-device locked
- Number of cable entries:
- 1 Piece(s)
- Function:
- Connection with PLC,Contact connection,Voltage supply
- Type of connection:
- Terminal, For connection of the device, please refer to the operating instructions
- Type of terminal:
- Spring-cage terminal
- No. of pins:
- 16 -pin
- Connection cross sections:
- 1 x 0.34 to 0.75 mm², wire with welded-on wire-end sleeve, 1 x 0.34 to 1.5 mm², wire with wire-end sleeve
- Design:
- Cubic
- Housing material:
- Metal
- Net weight:
- 1,900 g
- Housing color:
- Gray,Red
- Type of fastening:
- Through-hole mounting
- Type of cable entry:
- M20 x 1.5
- Side of cable entry:
- left, right, below
- Release device:
- Auxiliary release
- Switch type:
- Interlock device with guard interlocking
- Approach speed:
- 0.001 ... 0.5 m/s
- Locking type:
- Spring force
- Locking actuation:
- Spring
- Locking force, max.:
- 9,750 N
- Mechanical life time:
- 1,000,000 actuation cycles, IEC 60947-5-1
- Actuation frequency, max.:
- 600 per hour, IEC 60947-5-1
- Extraction force, unlocked actuator:
- 30 N
- Assured operating distance Sao:
- 2 mm
- Assured cut-out distance Sar:
- 4 mm (actuator not locked),10 mm (actuator locked)
- Nominal switching distance Sn:
- 2.5 mm
- Repeatability:
- ? 10 % Sn
- Max. switching frequency:
- 1 Hz
- Type of display:
- LED
- Number of LEDs:
- 5 Piece(s)
- Operational controls:
- 3 command devices
- Function of the operational control:
- Button illuminates with icon "Acknowledge", blue,Button illuminates with icon "Request", white,E-Stop button, not illuminated, with rotary release
- Ambient temperature, operation:
- -20 ... 50 °C
- Ambient temperature, storage:
- -40 ... 75 °C
- Degree of protection:
- IP 65, EN 60529
- Approvals:
- ECOLAB,TÜV Süd,c UL US
- Customs tariff number:
- 85369095
- ECLASS 5.1.4:
- 27272603
- ECLASS 8.0:
- 27272603
- ECLASS 9.0:
- 27272603
- ECLASS 10.0:
- 27272603
- ECLASS 11.0:
- 27272603
- ECLASS 12.0:
- 27272603
- ECLASS 13.0:
- 27272603
- ECLASS 14.0:
- 27272603
- ECLASS 15.0:
- 27272603
- ETIM 5.0:
- EC002593
- ETIM 6.0:
- EC002593
- ETIM 7.0:
- EC002593
- ETIM 8.0:
- EC002593
- ETIM 9.0:
- EC002593
- ETIM 10.0:
- EC002593
