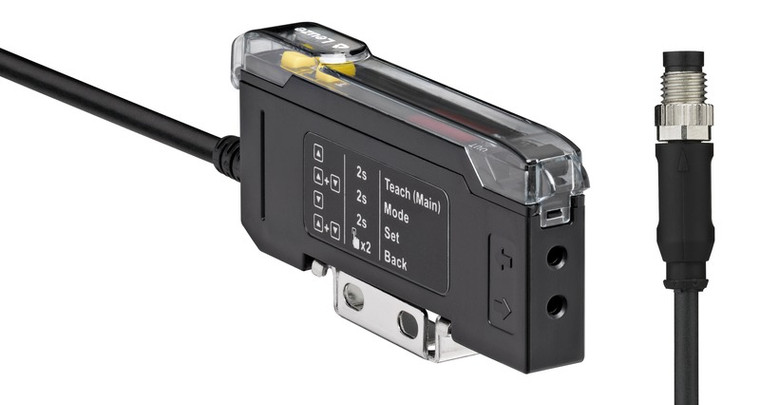

Fiber optic amplifier
- Series:
- 462C
- Suitable for:
- Glass fiber optics,Plastic fiber optics
- Light source:
- LED, Red
- Wavelength:
- 623 nm
- Transmitted-signal shape:
- Pulsed
- Protective circuit:
- Polarity reversal protection,Short circuit protected
- Fiber optic connection:
- Clamp
- Supply voltage UB:
- 12 ... 24 V, DC
- Residual ripple:
- 0 ... 10 %, From UB
- Open-circuit current:
- 0 ... 50 mA
- Number of digital switching outputs:
- 2 Piece(s)
- Type:
- Digital switching output
- Voltage type:
- DC
- Switching current, max.:
- 100 mA
- Switching voltage:
- high: ?(UB-2.5V),low: ? 2.5 V
- Switching element:
- Transistor, PNP
- Switching element:
- Transistor, NPN
- Switching frequency PO1 - PO2:
- 250 Hz
- Switching frequency PO3 - PO5:
- 1,500 Hz
- Response time PO1 - PO2:
- 2 ms
- Response time PO3 - PO5:
- 0.33 ms
- Switch-on/-off delay:
- Switch-on/-off delay
- Readiness delay:
- 500 ms
- Number of connections:
- 1 Piece(s)
- Function:
- Signal OUT,Voltage supply
- Type of connection:
- Cable with connector
- Cable length:
- 150 mm
- Cable color:
- Black
- Number of conductors:
- 4 -wire
- Thread size:
- M8
- Design:
- Cubic
- Dimension (W x H x L):
- 10 mm x 33 mm x 79.4 mm
- Housing material:
- Plastic
- Plastic housing:
- ABS
- Net weight:
- 30 g
- Housing color:
- Black
- Type of fastening:
- Via optional mounting device
- Type of display:
- LED
- Number of LEDs:
- 1 Piece(s)
- Operational controls:
- Control buttons
- Function of the operational control:
- Sensitivity adjustment,Switching range adjustment
- Ambient temperature, operation:
- -10 ... 60 °C
- Relative humidity (non-condensing):
- 35 ... 85 %
- Degree of protection:
- IP 50
- Standards applied:
- IEC 60947-5-2
- Customs tariff number:
- 85423390
- ECLASS 5.1.4:
- 27270905
- ECLASS 8.0:
- 27270905
- ECLASS 9.0:
- 27270905
- ECLASS 10.0:
- 27270905
- ECLASS 11.0:
- 27270905
- ECLASS 12.0:
- 27270905
- ECLASS 13.0:
- 27270905
- ECLASS 14.0:
- 27270905
- ECLASS 15.0:
- 27270905
- ETIM 5.0:
- EC002651
- ETIM 6.0:
- EC002651
- ETIM 7.0:
- EC002651
- ETIM 8.0:
- EC002651
- ETIM 9.0:
- EC002651
- ETIM 10.0:
- EC002651
