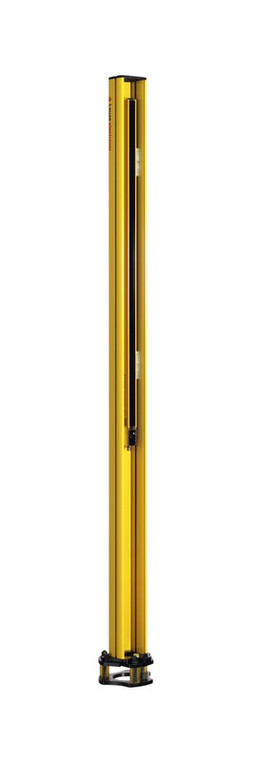

Leuze MLC510R30-1800-UDC-2100-S2 Industrial Sensor System
Leuze
$3,351.00
The MLC510R30-1800-UDC-2100-S2 is a precision industrial sensor engineered for demanding automation applications. Featuring IP-rated protection and wide operating temperature range, it delivers reliable performance in manufacturing, logistics, and process control environments.
Technical Documentation:
Complete technical specifications, dimensional drawings, wiring diagrams, and safety documentation are available on the Leuze website at https://www.leuze.com/en-us/usa/products (search model MLC510R30-1800-UDC-2100-S2). CAD models in STEP and EPLAN formats available for download to streamline machine design and panel layout.
- Series:
- MLC-UDC
- Device type:
- Receiver
- Application:
- Hand protection
- Function package:
- Basic
- Type:
- 4, IEC/EN 61496
- SIL:
- 3, IEC 61508
- SILCL:
- 3, IEC/EN 62061
- Performance Level (PL):
- e, EN ISO 13849-1
- PFHD:
- 7.73E-09 per hour
- Mission time:
- 20 years, EN ISO 13849-1
- Category:
- 4, EN ISO 13849
- Resolution:
- 30 mm
- Protective field height:
- 1,800 mm
- Customs tariff number:
- 85365019
- ECLASS 5.1.4:
- 27272704
- ECLASS 8.0:
- 27272704
- ECLASS 9.0:
- 27272704
- ECLASS 10.0:
- 27272704
- ECLASS 11.0:
- 27272704
- ECLASS 12.0:
- 27272704
- ECLASS 13.0:
- 27272704
- ECLASS 14.0:
- 27272704
- ECLASS 15.0:
- 27272704
- ETIM 5.0:
- EC002549
- ETIM 6.0:
- EC002549
- ETIM 7.0:
- EC002549
- ETIM 8.0:
- EC002549
- ETIM 9.0:
- EC002549
- ETIM 10.0:
- EC002549
- Datasheet:
- View
