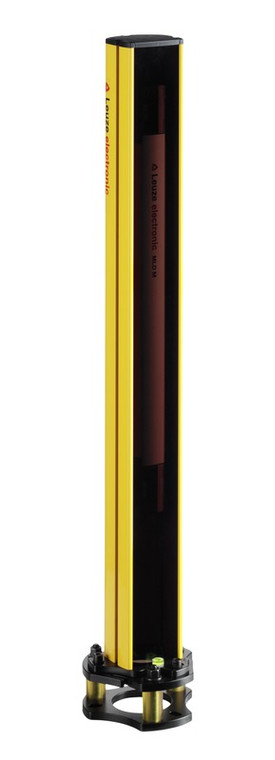

Leuze MLD500-T3-UDC-1300-S2-P Safety sensor/transmitter set
Leuze
$1,018.02
(No reviews yet)
Write a Review
Write a Review
Leuze
Leuze MLD500-T3-UDC-1300-S2-P Safety sensor/transmitter set
MLD500-T3-UDC-1300-S2-P Safety sensor/transmitter set
- Series:
- MLD-UDC
- Device type:
- Transmitter
- Special version:
- Protective screen
- Functions:
- Range reduction
- Integrated laser alignment aid:
- No
- Integrated status indicator:
- No
- Type:
- 4, IEC/EN 61496
- SIL:
- 3, IEC 61508
- SILCL:
- 3, IEC/EN 62061
- MTTFd:
- 204 years, EN ISO 13849-1
- Mission time:
- 20 years, EN ISO 13849-1
- Category:
- 4, EN ISO 13849
- Operating range:
- 0.5 ... 50 m
- Number of beams:
- 3 Piece(s)
- Beam spacing:
- 400 mm
- Light source:
- LED,LED,Infrared
- Wavelength:
- 850 nm
- Transmitted-signal shape:
- Pulsed
- LED risk group:
- Exempt group (in acc. with EN 62471:2008)
- Protective circuit:
- Overvoltage protection,Short circuit protected
- Supply voltage UB:
- 24 V, DC, -20 ... 20 %
- Current consumption, max.:
- 50 mA, Without external load
- Fuse:
- External with max. 3 A
- Number of connections:
- 1 Piece(s)
- Function:
- Machine interface
- Type of connection:
- Connector
- Thread size:
- M12
- Material:
- Metal
- No. of pins:
- 5 -pin
- Permissible conductor cross section, type.:
- 0.25 mm²
- Length of connection cable, max.:
- 100 m
- Permissible cable resistance to load, max.:
- 200 ?
- Dimension (W x H x L):
- 160 mm x 1,360 mm x 149 mm
- Housing material:
- Metal
- Metal housing:
- Aluminum
- Lens cover material:
- Plastic / PMMA
- Material of end caps:
- Diecast zinc
- Housing color:
- Yellow, RAL 1021
- Type of fastening:
- Groove mounting,Swivel mount
- With device column:
- Yes
- Column height without foot:
- 1,300 mm
- Type of display:
- LED
- Number of LEDs:
- 3 Piece(s)
- Ambient temperature, operation:
- -30 ... 55 °C
- Ambient temperature, storage:
- -40 ... 75 °C
- Relative humidity (non-condensing):
- 0 ... 95 %
- Degree of protection:
- IP 67
- Protection class:
- III
- Approvals:
- TÜV Süd,c CSA US,c TÜV NRTL US
- US patents:
- US 6,418,546 B,US 7,741,595 B
- Customs tariff number:
- 85365019
- ECLASS 5.1.4:
- 27272703
- ECLASS 8.0:
- 27272703
- ECLASS 9.0:
- 27272703
- ECLASS 10.0:
- 27272703
- ECLASS 12.0:
- 27272703
- ECLASS 13.0:
- 27272703
- ECLASS 14.0:
- 27272703
- ECLASS 15.0:
- 27272703
- ETIM 5.0:
- EC001832
- ETIM 6.0:
- EC001832
- ETIM 7.0:
- EC001832
- ETIM 8.0:
- EC001832
- ETIM 9.0:
- EC001832
- ETIM 10.0:
- EC001832
- Datasheet:
- View
- Declaration of Conformity:
- View
