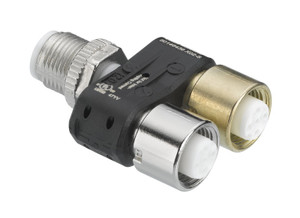

Leuze YV U-SDD-25-83-83-X04 Industrial Sensor System
Leuze
$27.00
The YV U-SDD-25-83-83-X04 is a precision industrial sensor engineered for demanding automation applications. Featuring IP67 protection and wide operating temperature range, it delivers reliable performance in manufacturing, logistics, and process control environments.
Technical Specifications:
Protection rating: IP67 (dust-tight, water-resistant for washdown environments)
Operating temperature: -25...85 °C
Technical Documentation:
Complete technical specifications, dimensional drawings, wiring diagrams, and safety documentation are available on the Leuze website at https://www.leuze.com/en-us/usa/products (search model YV U-SDD-25-83-83-X04). CAD models in STEP and EPLAN formats available for download to streamline machine design and panel layout.
- Number of connections:
- 3 Piece(s)
- Thread size:
- M12
- Type:
- Male
- No. of pins:
- 5 -pin
- Shielded:
- No
- Design:
- Cubic
- Dimension (W x H x L):
- 33.5 mm x 15.8 mm x 40.4 mm
- Width across flats:
- 13 mm
- Material:
- PUR
- Ambient temperature, operation:
- -25 ... 85 °C
- Degree of protection:
- IP 67
- Customs tariff number:
- 85366990
- ECLASS 5.1.4:
- 27279201
- ECLASS 8.0:
- 27440104
- ECLASS 9.0:
- 27069190
- ECLASS 10.0:
- 27440111
- ECLASS 11.0:
- 27440111
- ECLASS 12.0:
- 27440111
- ECLASS 13.0:
- 27440111
- ECLASS 14.0:
- 27440111
- ECLASS 15.0:
- 27440111
- ETIM 5.0:
- EC002498
- ETIM 6.0:
- EC002925
- ETIM 7.0:
- EC002925
- ETIM 8.0:
- EC003558
- ETIM 9.0:
- EC003558
- ETIM 10.0:
- EC003558
- Datasheet:
- View
- Declaration of Conformity:
- View
