Leuze

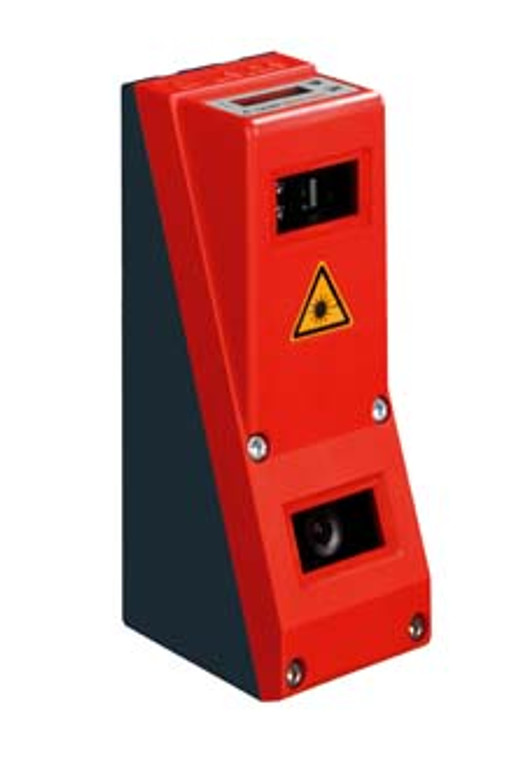

Leuze LRS 36/6.10 Line profile sensor

SKU:

LRS 36/6.10

UPC:

MPN:

50115418

Condition:

New

Series:

36

Contains:

LxSsoft configuration software

Application:

3D object detection

Special version:

Synchronization input

Light source:

Laser, Red

Laser class:

2M, IEC/EN 60825-1:2014

X-axis detection range:

150 ... 600 mm

Z-axis detection range:

200 ... 800 mm

Minimum object size, x-axis:

2 ... 3 mm

Minimum object size, z-axis:

2 ... 6 mm

Supply voltage UB:

18 ... 30 V, DC

Number of activation inputs:

1 Piece(s)

Number of digital switching inputs:

5 Piece(s)

Number of digital switching outputs:

6 Piece(s)

Response time:

10 ms

Type:

Ethernet

Number of connections:

3 Piece(s)

Function:

Signal IN,Signal OUT,Voltage supply

Type:

Male

Function:

Configuration interface,Data interface

No. of pins:

4 -pin

Encoding:

D-coded

Dimension (W x H x L):

56 mm x 160 mm x 74 mm

Housing material:

Metal,Plastic

Metal housing:

Aluminum

Lens cover material:

Plastic

Net weight:

620 g

Ambient temperature, operation:

-30 ... 50 °C

Ambient temperature, storage:

-30 ... 70 °C

Degree of protection:

IP 67

Protection class:

III

Approvals:

c UL US

Standards applied:

IEC 60947-5-2

Customs tariff number:

90318020

ECLASS 5.1.4:

27280190

ECLASS 8.0:

27280190

ECLASS 9.0:

27280190

ECLASS 10.0:

27280190

ECLASS 11.0:

27280190

ECLASS 12.0:

27280190

ECLASS 13.0:

27280190

ECLASS 14.0:

27280190

ECLASS 15.0:

27280190

ETIM 5.0:

EC001825

ETIM 6.0:

EC001825

ETIM 7.0:

EC001825

ETIM 8.0:

EC001825

ETIM 9.0:

EC001825

ETIM 10.0:

EC001825
