Leuze

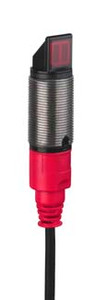

Leuze LS328/9D-M12 Throughbeam photoelectric sensor transmitter

SKU:

LS328/9D-M12

UPC:

MPN:

50122702

Condition:

New

Series:

328

Operating principle:

Throughbeam principle

Device type:

Transmitter

Special version:

Deactivation input

Operating range:

0 ... 10 m

Operating range:

Guaranteed operating range

Operating range limit:

0 ... 15 m

Operating range limit:

Typical operating range

Light source:

LED, Red

Wavelength:

620 nm

LED group:

Exempt group (in acc. with EN 62471)

Protective circuit:

Polarity reversal protection,Short circuit protected

Supply voltage UB:

10 ... 30 V, DC, Incl. residual ripple

Residual ripple:

0 ... 15 %, From UB

Open-circuit current:

0 ... 15 mA

Number of deactivation inputs:

2 Piece(s)

Readiness delay:

300 ms

Function:

Signal IN,Voltage supply

Type of connection:

Connector

Thread size:

M12

Type:

Male

Material:

Plastic

No. of pins:

4 -pin

Encoding:

A-coded

Dimension (Ø x L):

18 mm x 46 mm

Thread size:

M18 x 1 mm

Housing material:

Plastic,Stainless steel

Stainless steel housing:

V2A

Plastic housing:

ABS

Lens cover material:

Plastic

Net weight:

20 g

Housing color:

Black,Silver

Type of display:

LED

Ambient temperature, operation:

-40 ... 60 °C

Ambient temperature, storage:

-40 ... 70 °C

Degree of protection:

IP 67

Protection class:

III

Approvals:

c UL US

Standards applied:

IEC 60947-5-2

Customs tariff number:

85365019

ECLASS 5.1.4:

27270901

ECLASS 8.0:

27270901

ECLASS 9.0:

27270901

ECLASS 10.0:

27270901

ECLASS 11.0:

27270901

ECLASS 12.0:

27270901

ECLASS 13.0:

27270901

ECLASS 14.0:

27270901

ECLASS 15.0:

27270901

ETIM 5.0:

EC002716

ETIM 6.0:

EC002716

ETIM 7.0:

EC002716

ETIM 8.0:

EC002716

ETIM 9.0:

EC002716

ETIM 10.0:

EC002716
