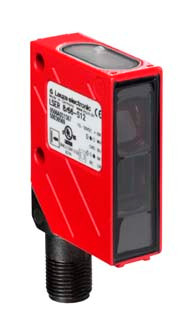

Leuze LSSR 8-S12 Industrial Sensor System
Leuze
$312.00
The LSSR 8-S12 is a precision industrial sensor engineered for demanding automation applications. Featuring IP67 protection and wide operating temperature range, it delivers reliable performance in manufacturing, logistics, and process control environments.
Technical Specifications:
Light source: LED, red emission
Protection rating: IP67 (dust-tight, water-resistant for washdown environments)
Supply voltage: 10...30 V DC with reverse polarity protection
Operating temperature: -40...60 °C (extended cold storage rating)
Technical Documentation:
Complete technical specifications, dimensional drawings, wiring diagrams, and safety documentation are available on the Leuze website at https://www.leuze.com/en-us/usa/products (search model LSSR 8-S12). CAD models in STEP and EPLAN formats available for download to streamline machine design and panel layout.
- Series:
- 8
- Operating principle:
- Throughbeam principle
- Device type:
- Transmitter
- Operating range:
- 0 ... 12 m
- Operating range:
- Guaranteed operating range
- Operating range limit:
- 0 ... 20 m
- Operating range limit:
- Typical operating range
- Beam path:
- Divergent
- Light source:
- LED, Red
- Wavelength:
- 660 nm
- Type of light spot geometry:
- Rectangular
- Protective circuit:
- Polarity reversal protection,Short circuit protected
- Supply voltage UB:
- 10 ... 30 V, DC
- Residual ripple:
- 0 ... 15 %, From UB
- Open-circuit current:
- 0 ... 35 mA
- Readiness delay:
- 100 ms
- Function:
- Voltage supply
- Type of connection:
- Connector, Turning, 90°
- Thread size:
- M12
- Type:
- Male
- Material:
- Metal
- No. of pins:
- 5 -pin
- Encoding:
- A-coded
- Dimension (W x H x L):
- 15 mm x 48 mm x 38 mm
- Housing material:
- Metal
- Metal housing:
- Zinc
- Lens cover material:
- Glass
- Net weight:
- 70 g
- Housing color:
- Red
- Type of fastening:
- Dovetail grooves,Mounting thread,Through-hole mounting,Via optional mounting device
- Compatibility of materials:
- ECOLAB
- Type of display:
- LED
- Ambient temperature, operation:
- -40 ... 60 °C
- Ambient temperature, storage:
- -40 ... 70 °C
- Degree of protection:
- IP 67,IP 69K
- Protection class:
- II
- Approvals:
- c UL US
- Standards applied:
- IEC 60947-5-2
- Customs tariff number:
- 85365019
- ECLASS 5.1.4:
- 27270901
- ECLASS 8.0:
- 27270901
- ECLASS 9.0:
- 27270901
- ECLASS 10.0:
- 27270901
- ECLASS 11.0:
- 27270901
- ECLASS 12.0:
- 27270901
- ECLASS 13.0:
- 27270901
- ECLASS 14.0:
- 27270901
- ECLASS 15.0:
- 27270901
- ETIM 5.0:
- EC002716
- ETIM 6.0:
- EC002716
- ETIM 7.0:
- EC002716
- ETIM 8.0:
- EC002716
- ETIM 9.0:
- EC002716
- ETIM 10.0:
- EC002716
- Datasheet:
- View
- Declaration of Conformity:
- View
