Description
Technical Data
Technical data
Rated voltage UN
30V
Rated current
Rated current
?1 A
Pole number
8
Transfer rate
10 Gbit/s
Category
Cat.6A
Contact type
Penetration contact
Shielding
shielded
General

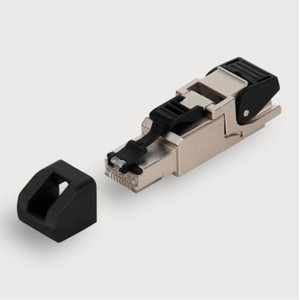

Form male 1
- RJ45
- straight
- shielded
Degree of polution
1
Insulation resistance
> 500 M?
Contact resistance
< 20 m?
Flamability according to UL 94
V0
Protection class
IP20
Housing material
Zinc die-casting
Color of the housing
black
Color
black
Cover
PBT black
Contact material
Spring steel gold-plated
Strand diameter
0,85??1,1 mm
Cable diameter
5??9 mm
Operation temperature range
-40???C??70???C
Storage temperature range
-40???C??70???C
Dimensions (w ?? h ?? d)
13,8??16,2??53,1 mm
Mechanical service life
>750 insertion cycles
Cross-section AWG
AWG 26/1, AWG 26/7, AWG 26/19
Weight
0,025 kg/piece
Connection type
Data 8 ?? RJ45
Approvals
cULus (E326112)
Standards
IEC 60603-7-51
PU
1 piece
Comments
- Suitable for Profinet, SERCOS3, Ethercat, Ethernet/IP, Powerlink, VARAN, Power over Ethernet+ (PoE+IEEE 802.3at)
- Suitable cables, see overview assignment Ethernet cables to connectors
Dimensions
Connection assignment
Symbols
