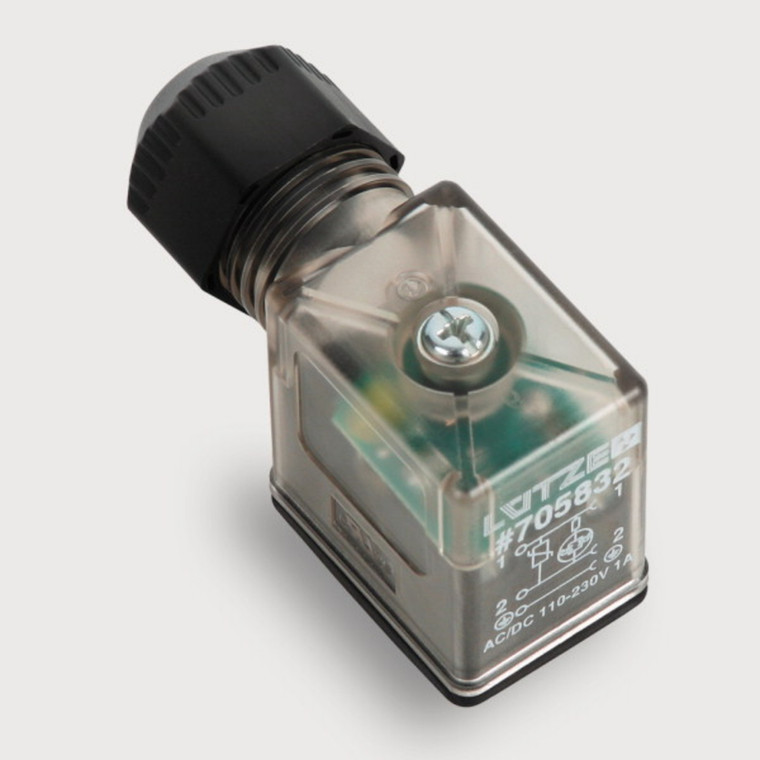

Description
Technical Data
Technical data
Type of function
Valve suppressor
Protection device
Varistor
Rated voltage UN
AC/DC 110??230 V
Rated voltage range
110??230V
Current Consumption
4 mA
Cut-off peak
? 475 V
Rated frequency fN
50 Hz / 60 Hz
Connecting lead ??
4 ?? 9 mm
General
Design
BI Ind. (11 mm)
Status indication
LED yellow
Amperage range
? 1 A
Contact resistance
< 15 m?
Insulation resistance
> 100 M?
Pole number
3
Housing material
PA
Color of the housing
transparent
Contact material
CuZn silver-plated
Material sealing ring
NBR
Mechanical service life
>100 insertion cycles
Degree of polution
3
Protection class
IP67
Mounting
Breakaway torque 0.4 Nm
Connection type
Screw terminal
Connection cross-section
max. 1.5 mm2
Connection cross-section
max. AWG 18
Material seal
NBR
Operation temperature range
-40???C??90???C
Storage temperature range
-40???C??90???C
Dimensions (w ?? h ?? d)
21??30,3??51 mm
Weight
0,021 kg/piece
PU
1 piece
Approvals
cURus (E256031)
Dimensions
PIN assignment
