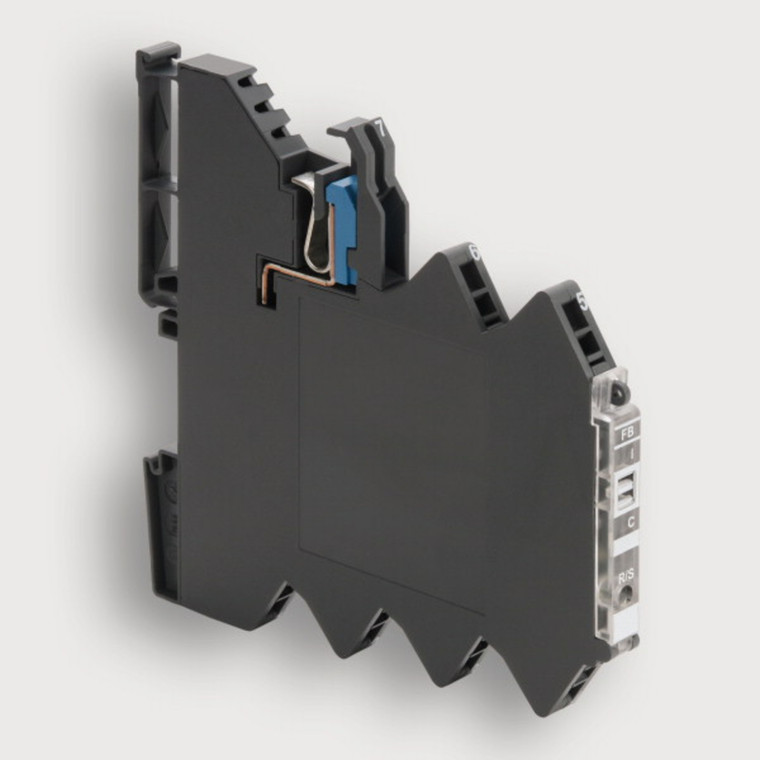

Description
Technical Data
Input
Type of function
1-channel 1 pin switching
Rated voltage UN
DC 12/24 V
Operation voltage range
DC 10?????30 V
Rated current IN
DC 10 A
Supply current
DC 40 A over Cu-rails 10 ?? 3 mm
Reverse voltage protection
internal electronics
Connection type input
screwless contact slide
Control input (Set / Reset)
Signal level
DC 12/24 V acc. to EN 61131
OFF
Pulse with falling edge >100 ms, <800 ms
ON
Pulse with falling edge > 1 s
Output
Switching element
MOSFET
Output current
max. DC 10 A
Voltage drop
<170 mV (10 A)
Status display output
- LED green: operating voltage present, no error
- LED red: error in load circuit
Switch-on capacity
10000 ???F
Current range
1 A ????? 10 A (adjustable via switch in 1 A steps)
Characteristic
fast-acting (1), medium (2), slow 1 (3), slow 2 (4), slow 3 (5) see 'characteristic curves'
Signal output
Signal level
- DC 12/24 V: operating voltage on standby, no error,
- DC 0 V: error, output switched off and manual "OFF"
Switching element
Transistor, collector with pull-up resistance
General
Operation temperature range
-25 ???C ????? +50 ???C
Storage temperature range
-40???C?????85???C
Dimensions (w ?? h ?? d)
8,1??114,5??116 mm
Housing material
PA 6.6 (UL 94 V-0, NFF I2, F2)
Color of the housing
basalt grey
Mounting
- DIN rail mountable TS35
- (EN 60715)
MTBF
690000 h
Protection class
IP20
Installation position
any
Connection type
- Spring terminal
- 0.25 mm2 ????? 2.5 mm2
Weight
0,12 kg/piece
Approvals
- cULus (E135145)
- GL
Standards
- EN 60950-1
- EN 61131-1, 2
- EN 61000
- EN 60947-4-1
- EN 55022
PU
1 piece
Dimensions
PIN assignment
1: Characteristic fast
2: Characteristic medium
3: Characteristic slow-1
4: Characteristic slow-2
5: Characteristic slow-3
Signal output
