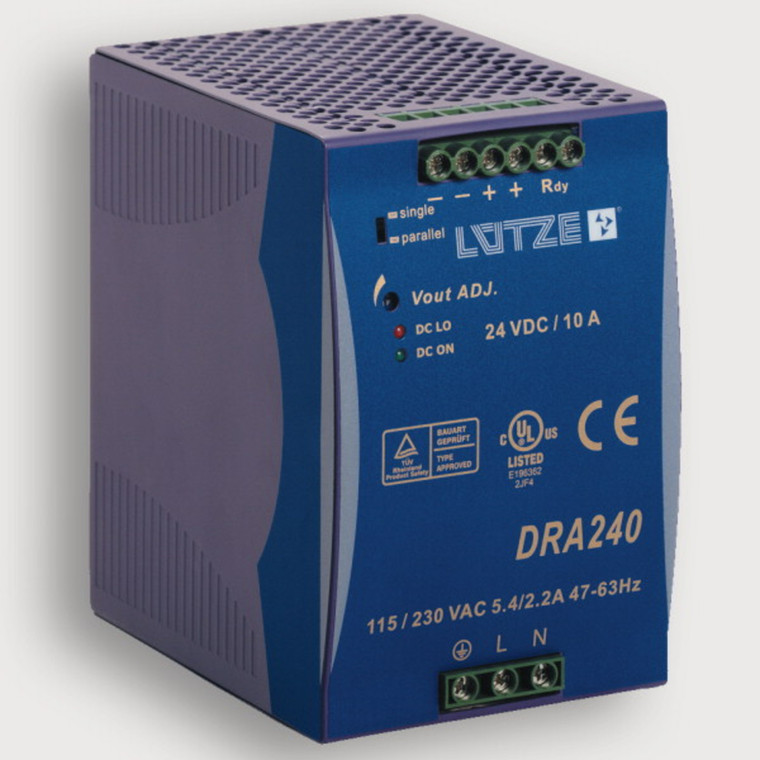

Description
Technical Data
Input
Number of phases
1
Rated voltage UN
AC 115/230 V
Operation voltage range
AC 88???264 V / DC 120???375 V
Line frequency
47???63 Hz
Rated current IN
2.4 A @ AC 115 V / 12 A @ AC 230 V
Inrush current
30 A @ AC 115 V / 60 A @ AC 230 V
Internal fuse
T6, 3 A/AC 250 V
External fuse
Mini-circuit breaker: B 10 A, C 6 A
Power Factor Correction P.F.C.
0.7
Output
Rated voltage UN
DC24V
Rated current IN
10 A
Heat dissipation
35 A @ AC 230 V
Setting range Uout min./Uout max.
22.5/28.5 V
Accuracy
??ñ1 %
Load regulation
Single ??ñ1 %, Parallel ??ñ5 %
Line regulation
??ñ0.5 %
Rise time
1 s
Temperature coefficient
??ñ0.03 % / ???C
Ripple and Noise
100 mV
Hold up time
25 ms @ 115 V / 30 ms @ 230 V
Status indication DC ON LED green
???17.6???19.4 V
Status indication DC LOW LED red
???17.6???19.4 V
Parallel / redundant mode
max. 3 units at 90% load current, manual switch S/P
Efficiency
89 %
Over voltage protection
120???145 %
Rated over load protection
105???145 %
Short circuit
Current limit
Monitoring
DC ON Control (Rdy)
N/O contact
Switching voltage
DC 60 V
Switching current
max. 300 mA
Isolation voltage
DC 500 V
General
Switching frequency
approx. 40 kHz
Insulation voltage input / output
DC 4.2 kV
Insulation voltage input / ground
DC 2.1 kV
Insulation voltage output / ground
DC 700 V
Insulation resistance at DC 500 V
100 M?
Derating
Capacity: -2.5 %/???C starting at +61 ???C
Operation temperature range
-40 ???C ??? +71 ???C (Derating)
Storage temperature range
-25???C???85???C
MTBF
423000 h
Relative air humidity
20 ??? 90 % RH, not condensing
Cooling
Air convection, 25 mm clearance all-round
Housing material
Metal
Mounting
- DIN rail mountable TS35
- (EN 60715)
Application height
4850 m
Installation position
vertical
Protection class
IP20
Protection class
I
Over voltage category
II
Degree of polution
2
Weight
1 kg/piece
Connection type
- Screw terminal
- 0.20 mm2 ??? 4.0 mm2
- max. 0.62 Nm
Dimensions (w ?? h ?? d)
83??126??116 mm
Approvals
cULus (E249179)
Standards
- UL 60950-1
- EN 60950-1
- EN 61000-6-3
- EN 55022 Class B
- EN 61000-3-2
- EN 61000-3-3
- EN 61000-6-2
- EN 55024 Class I
- Division 2, Groups A, B, C, D
PU
1 piece
Dimensions
Short circuit characteristics
