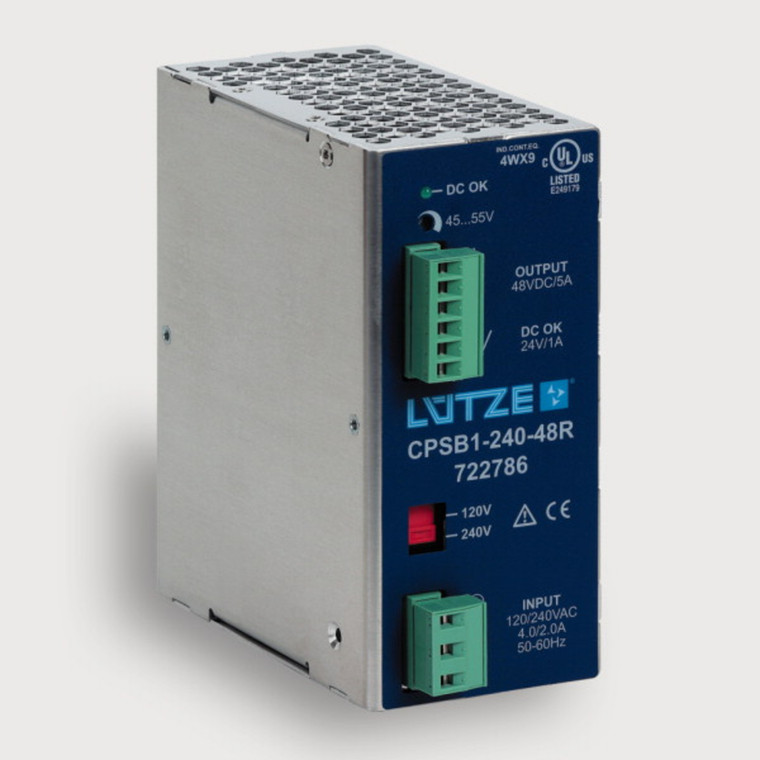

Description
Technical Data
Input
Number of phases
1
Rated voltage UN
AC 120 / 230 V (manual)
Operation voltage range
AC 90???132 V / AC 187???264 V, DC 270???345 V
Line frequency
47???63 Hz
Rated current IN
4 A @ AC 115 V / 2 A @ AC 230 V
Inrush current
30 A @ AC 115 V / 35 A @ AC 230 V
Internal fuse
T6, 3 A/AC 250 V
External fuse
Mini-circuit breaker: C 10 A
Power Factor Correction P.F.C.
>0.6
Output
Rated voltage UN
DC48V
Rated current IN
5 A
Max. output current
6.9 A, 30 s @ 24 V
Short-circuit current
20 A, 160 ms
Heat dissipation
<34 W
Setting range Uout min./Uout max.
45-55 V
Load regulation
??ñ1 %
Ripple and Noise
100 mV
Hold up time
>80 ms @ AC 120 V / >90 ms @ AC 230 V
Status indication DC ON LED green
???43.2 V
Status indication DC LOW LED red
???43.2 V
Parallel / redundant mode
max. 2 devices / via external decoupling diodes
Efficiency
90 %
Over voltage protection
yes
Rated over load protection
yes
Short circuit
Hiccup Mode
Monitoring
DC ON Control (Rdy)
N/O contact
Switching voltage
AC 300 V / DC 150 V
Switching current
AC/DC 1 A
Switching capacity
300 VA / 30 W
Isolation voltage
AC 500 V
General
Switching frequency
approx. 110 kHz
Insulation voltage input / output
DC 4.2 kV
Insulation voltage input / ground
DC 2.2 kV
Insulation voltage output / ground
DC 750 V
Derating
>50 ???C: -5 W/???C
Operation temperature range
-20 ???C ??? +70 ???C (Derating)
Storage temperature range
-25???C???85???C
MTBF
>500000 h: SN29500 / >150000 h: MIL HDBK 217F
Relative air humidity
20 ??? 90 % RH, not condensing
Cooling
Air convection, 100 mm distance top/bottom, 20 mm side
Housing material
Aluminum
Mounting
- DIN rail mountable TS35
- (EN 60715)
Installation position
vertical
Shock resistance
30 g 6 ms, 20 g 11 ms, 3 shocks/direction, 18 shocks in total, IEC60068-2-27: 2008
Vibration resistance
5 ??? 17.8 Hz: ??ñ1.6 mm, 17.8 ??? 500 Hz: 2 g 2 hours/axes X,Y,Z, IEC 60068-2-6: 2007
Protection class
IP20 (IEC 529, EN 60529)
Protection class
I
Over voltage category
III
Degree of polution
2
Weight
0,72 kg/piece
Connection type
- Screw terminal
- 0.20 mm2 ??? 2.5 mm2
- plug-in
- max. 0.56 Nm
Dimensions (w ?? h ?? d)
63,5??140??139 mm
Approvals
cULus (E249179)
Standards
- IEC 950
- EN 60950
- UL 60950
- EN 61000-4-2/3/4/5/6/11
- EN 61000-6-2
- EN 61000-6-4
- EN 50178
- EN 61558
- EN 50081-1
- EN 50082-2
- EN 55022 Class B
PU
1 piece
Dimensions
Short circuit characteristics
