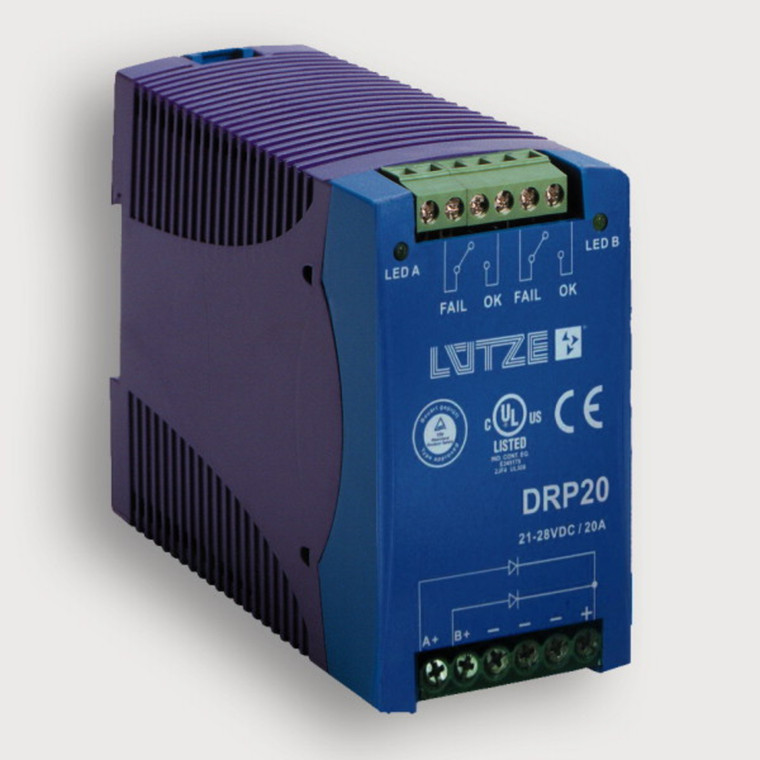

Description
Technical Data
Input
Rated voltage UN
DC 24 V
No. of inputs
2
Operation voltage range
DC 21??28 V
No. of inputs
2
Rated current IN
max. 20 A in total
Output
Rated voltage UN
24V
Rated current IN
20 A
Voltage drop
0.5 V
Max. output current
30 A, 5 s @ 24 V
Inverse voltage
30 V
Heat dissipation
max. 10 W
Status indication DC ON LED green
ON: DC input A or B OK / OFF: Error
Over voltage protection
No
Rated over load protection
No
Monitoring
DC ON Control (Rdy)
- Changeover contact per input
- No error: input voltage >20 V or <30 V, connection 2(5) - 3(6) closed
- Error: input voltage <20 V or >30 V, connection 2(5) - 1(4) closed
Switching voltage
AC 300 V / DC 150 V
Switching current
AC/DC 1 A
Switching capacity
300 VA / 30 W
Isolation voltage
AC 100 V
General
Operation temperature range
-5 ???C ?? +70 ???C
Storage temperature range
-25???C??85???C
MTBF
659000 h
Cooling
Air convection
Housing material
Plastic
Mounting
- DIN rail mountable TS35
- (EN 60715)
Application height
4850 m
Installation position
vertical
Protection class
IP20 (IEC 529, EN 60529)
Over voltage category
II
Degree of polution
2
Weight
0,21 kg/piece
Connection type
- Input
- Screw terminal
- 0.20 mm2 ?? 4.0 mm2
- Output
- Screw terminal
- 0.20 mm2 ?? 4.0 mm2
- Relays
- Screw terminal
- 0.20 mm2 ?? 2.5 mm2
Dimensions (w ?? h ?? d)
54??90??114 mm
Standards
- UL 508 listed
- UL 60950-1
- EN 55022 Class B
- EN 55024
- EN 61000-4-2/3/4/6/8
- EN 61204-3
PU
1 piece
Dimensions
PIN assignment
Use
