Description

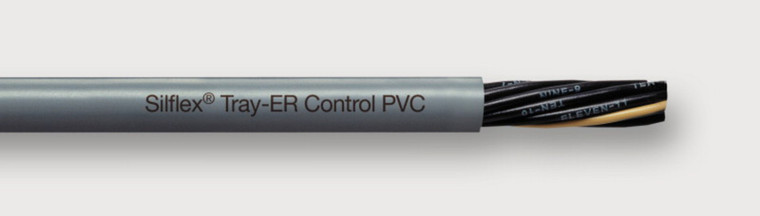

SILFLEX???? CONTROL CABLE PVC
Number of conductors/cross-section
9?????AWG14
Jacket material
PVC
Jacket color
grey RAL 7001
Outer ??
13,1 mm
Outer ??
0,516 inch
Weight
31,7 kg/100 m
Weight
213 Lbs/Mft
Cu-Index
17,1 kg/100 m
Cu-Index
115 Lbs/Mft
Element 1
Element construction
AWG14/9C
Conductor construction
AWG 14 (41/30)
Conductor
- AWG conductor
- CU-wire bare
Conductor category
fine wire
Conductor marking
- black
- with white number print
- green/yellow
Conductor insulation
- PVC/Nylon
- THHN ??????? THWN
overall construction
Jacket characteristics
- Oil resistant
- Silicone-free
Technical data
Rated voltage UN
- 600 V TC-ER/MTW
- 1000 V WTTC
Temperature range fixed
-40 ?????C ??????? +90 ?????C
Minimum bending radius fixed
4?????D
Element 1
Element construction
AWG14/9C
Approvals/Standards
Approvals
- TC-ER
- WTTC
- PLTC-ER
- ITC-ER
- cURus
- cULus
- UL Type MTW or DP-1
- Class 1 Div. 2 per NEC
- Art. 336, 392, 501
- CIC FT4
- cUL TC
- UL 1277
UL style
AWM 20886
Conformity
- CE
- REACH
- RoHS
Oil resistant according to
Oil Res II
General
Note
CE These products are in conformity with the EU Low Voltage Directive 2014/35/EU
Multi-conductor control cables with TC-ER ???????Exposed Run??????? approval Machine and device construction, transport and conveyor technology, HVAC technology Compliant with NFPA 79 standards ???????TC-ER?????????????? for use on machines and in open cable ducts ???????WTTC??????? Wind Turbine Tray Cable for use in wind turbines ???????MTW??????? Machine Tool Wire ???????PLTC-ER??????? Power Limited Tray Cable ??????? Exposed Run ???????ITC-ER??????? Instrumentation Tray Cable ??????? Exposed Run In dry, moist and wet rooms
