Description
Technical Data
Construction
Description

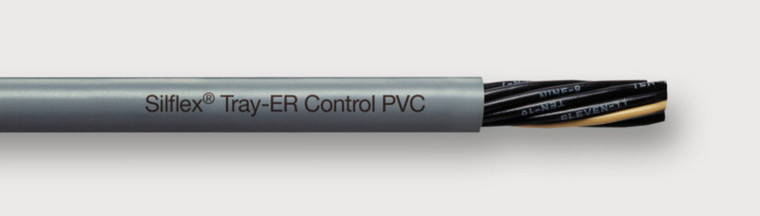

SILFLEX?? CONTROL CABLE PVC
Number of conductors/cross-section
5??AWG18
Jacket material
PVC
Jacket color
grey RAL 7001
Outer ??
8,8 mm
Outer ??
0,346 inch
Weight
12,2 kg/100 m
Weight
82 Lbs/Mft
Cu-Index
4,5 kg/100 m
Cu-Index
30 Lbs/Mft
Element 1
Element construction
AWG18/5C
Conductor construction
AWG 18 (19/30)
Conductor
- AWG conductor
- CU-wire bare
Conductor category
fine wire
Conductor marking
- black
- with white number print
- green/yellow
Conductor insulation
- PVC/Nylon
- THHN ?? THWN
overall construction
Jacket characteristics
- Oil resistant
- Silicone-free
Technical data
Rated voltage UN
- 600 V TC-ER/MTW
- 1000 V WTTC
Temperature range fixed
-40 ???C ?? +90 ???C
Minimum bending radius fixed
4??D
Element 1
Element construction
AWG18/5C
Approvals/Standards
Approvals
- TC-ER
- WTTC
- PLTC-ER
- ITC-ER
- cURus
- cULus
- UL Type MTW or DP-1
- Class 1 Div. 2 per NEC
- Art. 336, 392, 501
- CIC FT4
- cUL TC
- UL 1277
UL style
AWM 20886
Conformity
- CE
- REACH
- RoHS
Oil resistant according to
Oil Res II
General
Note
CE These products are in conformity with the EU Low Voltage Directive 2014/35/EU
Multi-conductor control cables with TC-ER ??Exposed Run?? approval Machine and device construction, transport and conveyor technology, HVAC technology Compliant with NFPA 79 standards ??TC-ER???? for use on machines and in open cable ducts ??WTTC?? Wind Turbine Tray Cable for use in wind turbines ??MTW?? Machine Tool Wire ??PLTC-ER?? Power Limited Tray Cable ?? Exposed Run ??ITC-ER?? Instrumentation Tray Cable ?? Exposed Run In dry, moist and wet rooms
