Description
Technical Data
Construction
Description

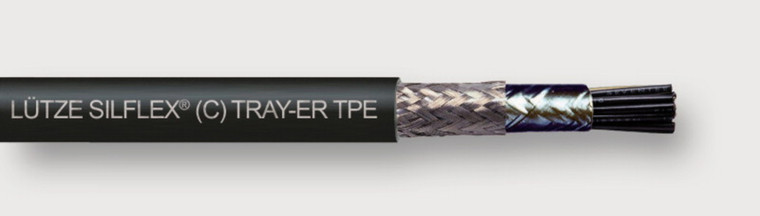

SILFLEX?? (C) TRAY-ER TPE
Number of conductors/cross-section
(18??AWG18)
Jacket material
TPE
Jacket color
black RAL 9005
Outer ??
14,9 mm
Outer ??
0,588 inch
Weight
264 Lbs/Mft
Cu-Index
127 Lbs/Mft
Element 1
Element construction
AWG18/18C
Conductor construction
AWG 18 (16/30)
Conductor
- AWG conductor
- CU-wire bare
Conductor category
fine wire
Conductor marking
- black
- with white number print
- green/yellow
Conductor insulation
- PVC/Nylon
- THHN ?? THWN
overall construction
Drain wire
CU-wire tin-plated
Overall shield
- Aluminium laminate
- Foil shield
- Braid shield
- Tinned copper wires
Jacket characteristics
- Oil resistant
- Silicone-free
- mineral oil-resistant
- bio-oil-resistant
Technical data
Rated voltage UN
- 600 V TC-ER 90C
- 600 V MTW 90C
- 1000 V WTTC 90C
- 600 V UL AWM 105 ???C
Temperature range fixed
-40 ???C ?? +90 ???C
Minimum bending radius fixed
6??D
Element 1
Element construction
AWG18/18C
Approvals/Standards
Approvals
- TC-ER
- cURus
- cULus
- UL Type MTW or DP-1
- WTTC
- Class 1 Div. 2 per NEC
- Art. 336, 392, 501
- cUL TC
- CIC FT4
- UL 1277
Conformity
- CE
- REACH
- RoHS
Oil resistant according to
- Oil Res II
- Oil Res I
General
Note
CE These products are in conformity with the EU Low Voltage Directive 2014/35/EU
Shielded multi-conductor cable for tray applications, with exposed run (open wiring) approval Compliant with NFPA 79 for machine tool wiring TC-ER for use with cable trays without conduit, which can reduce material and labor costs Metal cutting equipment, machine tools, machine and plant construction, HVAC technology, assembly and production lines, and other industrial applications WTTC ?? wind turbine tray cable rating for use in wind power generation Dry, damp and wet locations
