Description
Technical Data
Construction
Description

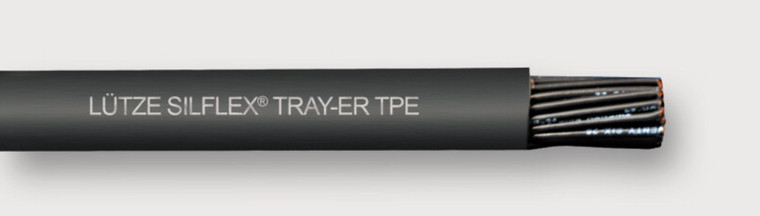

SILFLEX?? TRAY-ER TPE
Number of conductors/cross-section
4??AWG12
Jacket material
TPE
Jacket color
black RAL 9005
Outer ??
10,5 mm
Outer ??
0,413 inch
Weight
146 Lbs/Mft
Cu-Index
83 Lbs/Mft
Element 1
Element construction
AWG12/4C
Conductor construction
AWG 12 (65/30)
Conductor
- AWG conductor
- CU-wire bare
Conductor category
fine wire
Conductor marking
- black
- with white number print
- green/yellow
Conductor insulation
- PVC/Nylon
- THHN ?? THWN
overall construction
Jacket characteristics
- Oil resistant
- mineral oil-resistant
- bio-oil-resistant
- UV resistant (normal lighting conditions)
- Silicone-free
Technical data
Rated voltage UN
- 600 V TC-ER 90C
- 600 V MTW 90C
- 1000 V WTTC 90C
- 600 V UL AWM 105 ???C
Temperature range fixed
-40 ???C ?? +90 ???C
Minimum bending radius fixed
4??D
Element 1
Element construction
AWG12/4C
Approvals/Standards
Approvals
- TC-ER
- cURus
- cULus
- UL Type MTW or DP-1
- WTTC
- Class 1 Div. 2 per NEC
- Art. 336, 392, 501
- cUL TC
- CIC FT4
- UL 1277
- UL 509 BUS Drop pending
Conformity
- CE
- REACH
- RoHS
Oil resistant according to
- Oil Res I
- Oil Res II
General
Note
CE These products are in conformity with the EU Low Voltage Directive 2014/35/EU
Multi-conductor cable for tray applications, with exposed run (open wiring) approval Compliant with NFPA 79 for machine tool wiring TC-ER for use with cable trays without conduit, which can reduce material and labor costs Metal cutting equipment, machine tools, machine and plant construction, HVAC technology, assembly and production lines, and other industrial applications WTTC ?? wind turbine tray cable rating for use in wind power generation Dry, damp and wet locations
