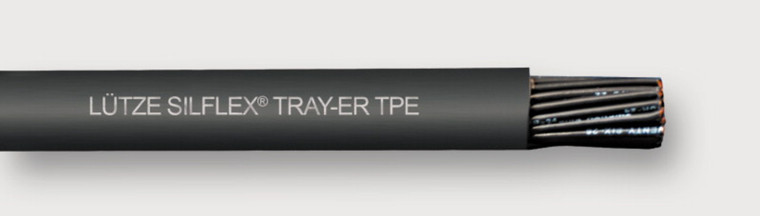

Lutze A3321807 silflextray-er tpe awg18/07c by the Foot
LutzeTechnical Data
Construction
Description
SILFLEX?? TRAY-ER TPE
Number of conductors/cross-section
7??AWG18
Jacket material
TPE
Jacket color
black RAL 9005
Outer ??
9,1 mm
Outer ??
0,356 inch
Weight
95 Lbs/Mft
Cu-Index
35 Lbs/Mft
Element 1
Element construction
AWG18/7C
Conductor construction
AWG 18 (16/30)
Conductor
- AWG conductor
- CU-wire bare
Conductor category
fine wire
Conductor marking
- black
- with white number print
- green/yellow
Conductor insulation
- PVC/Nylon
- THHN ?? THWN
overall construction
Jacket characteristics
- Oil resistant
- mineral oil-resistant
- bio-oil-resistant
- UV resistant (normal lighting conditions)
- Silicone-free
Technical data
Rated voltage UN
- 600 V TC-ER 90C
- 600 V MTW 90C
- 1000 V WTTC 90C
- 600 V UL AWM 105 ???C
Temperature range fixed
-40 ???C ?? +90 ???C
Minimum bending radius fixed
4??D
Element 1
Element construction
AWG18/7C
Approvals/Standards
Approvals
- TC-ER
- cURus
- cULus
- UL Type MTW or DP-1
- WTTC
- Class 1 Div. 2 per NEC
- Art. 336, 392, 501
- cUL TC
- CIC FT4
- UL 1277
Conformity
- CE
- REACH
- RoHS
Oil resistant according to
- Oil Res I
- Oil Res II
General
Note
CE These products are in conformity with the EU Low Voltage Directive 2014/35/EU
Multi-conductor cable for tray applications, with exposed run (open wiring) approval Compliant with NFPA 79 for machine tool wiring TC-ER for use with cable trays without conduit, which can reduce material and labor costs Metal cutting equipment, machine tools, machine and plant construction, HVAC technology, assembly and production lines, and other industrial applications WTTC ?? wind turbine tray cable rating for use in wind power generation Dry, damp and wet locations
