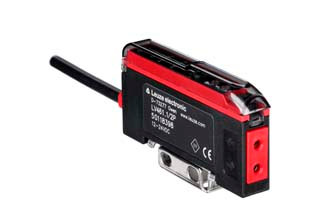

Leuze LV461.1/P2-150-M8 Industrial Sensor System
Leuze
$218.00
The LV461.1/P2-150-M8 is a precision industrial sensor engineered for demanding automation applications. Featuring IP-rated protection and wide operating temperature range, it delivers reliable performance in manufacturing, logistics, and process control environments.
Technical Specifications:
Light source: LED, red emission
Supply voltage: 12...24 V DC with reverse polarity protection
Connection: M8 quick-disconnect connector
Technical Documentation:
Complete technical specifications, dimensional drawings, wiring diagrams, and safety documentation are available on the Leuze website at https://www.leuze.com/en-us/usa/products (search model LV461.1/P2-150-M8). CAD models in STEP and EPLAN formats available for download to streamline machine design and panel layout.
- Series:
- 461
- Suitable for:
- Glass fiber optics,Plastic fiber optics
- Light source:
- LED, Red
- Supply voltage UB:
- 12 ... 24 V, DC
- Type:
- Digital switching output
- Switching element:
- Transistor, PNP
- Switching element:
- Transistor, NPN
- Switching frequency:
- 500 Hz
- Type of connection:
- Connector
- Cable length:
- 150 mm
- Thread size:
- M8
- Design:
- Cubic
- Dimension (W x H x L):
- 10 mm x 31 mm x 62 mm
- Housing material:
- Plastic
- Type of display:
- LED
- Operational controls:
- Control buttons,Multiturn potentiometer
- Customs tariff number:
- 85365019
- ECLASS 5.1.4:
- 27270905
- ECLASS 8.0:
- 27270905
- ECLASS 9.0:
- 27270905
- ECLASS 10.0:
- 27270905
- ECLASS 11.0:
- 27270905
- ECLASS 12.0:
- 27270905
- ECLASS 13.0:
- 27270905
- ECLASS 14.0:
- 27270905
- ECLASS 15.0:
- 27270905
- ETIM 5.0:
- EC002651
- ETIM 6.0:
- EC002651
- ETIM 7.0:
- EC002651
- ETIM 8.0:
- EC002651
- ETIM 9.0:
- EC002651
- ETIM 10.0:
- EC002651
- Datasheet:
- View
- Declaration of Conformity:
- View
