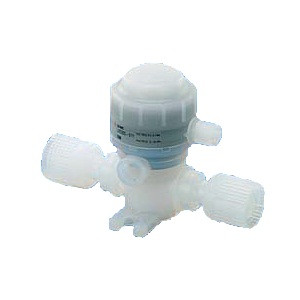

SMC LVQ20S-S07-1 High Purity Chemical Liquid Valve

SMC LVQ20S-S07-1 LVQS Series High Purity Chemical Valve Non-Metallic Exterior, Air Operated Insert Bushing, Integral Fitting Type Space Saving/Space Saving Connection

SMC
SKU:
LVQ20S-S07-1
Availability:
Contact us to confirm availability and lead times.
$225.70
Condition:
New
Current Stock:
Description
The SMC LVQ20S-S07-1 is a high-performance chemical valve designed for applications requiring high purity and non-metallic construction. This valve features an innovative all-in-one integrated design that eliminates the need for metal screws, ensuring a seamless and secure connection between the actuator and body portions. Constructed with a non-metallic exterior, the valve is made from high-quality materials including New PFA for the body, PTFE for the diaphragm, and PVDF for the actuator, ensuring excellent chemical resistance and durability. The integral fitting type and space-saving connection make it ideal for compact installations where space is at a premium. This air-operated valve is perfect for industries that demand high purity and reliability in their fluid control systems.
Additional Information
Body Class:
Body class 2
Valve Model:
N.C.
Body Type:
Space Saving Connection
Fitting Type:
LQ2
Applicable Tubing Size:
Fitting size: 2
Pilot Port Type:
LQ1 integral fitting Connection tubing size 1/8" x 0.086" (3 x 2)
Pilot Port Direction:
IN Side(Standard)
Option 1:
With Flow Rate Adjustment
Option 2:
None
