Leuze

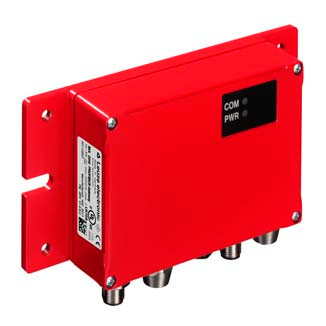

Leuze MA 204i Profibus Gateway Modular connection unit

SKU:

MA 204i Profibus Gateway

UPC:

MPN:

50112893

Condition:

New

Series:

MA 2xxi

Suitable for:

BCL 2x series bar code readers,BCL 8 series bar code readers,BPS 8 series bar code positioning system,DCR 200i series stationary 2D-code readers,FIS series mobile 2D-code readers,HFxx series mobile RFID read/write systems,HS 65x8,IT 1900g series mobi

Supply voltage UB:

18 ... 30 V, DC

Current consumption, max.:

300 mA

Type:

PROFIBUS DP, RS 232

Number of connections:

6 Piece(s)

Function:

Connection to device

Type of connection:

Plug connector

Function:

BUS OUT

Function:

BUS IN

Function:

Service interface

Type of connection:

Sub-D

No. of pins:

9 -pin

Design:

Cubic

Dimension (W x H x L):

107 mm x 40 mm x 180 mm

Housing material:

Metal

Net weight:

700 g

Housing color:

Red, RAL 3000

Type of fastening:

Through-hole mounting

Type of display:

LED

Number of LEDs:

2 Piece(s)

Ambient temperature, operation:

0 ... 55 °C

Ambient temperature, storage:

-20 ... 60 °C

Relative humidity (non-condensing):

5 ... 90 %

Degree of protection:

IP 65

Approvals:

PROFIBUS,c UL US

Customs tariff number:

85176200

ECLASS 5.1.4:

27069190

ECLASS 8.0:

27069190

ECLASS 9.0:

27069190

ECLASS 10.0:

27069190

ECLASS 11.0:

27069090

ECLASS 12.0:

27069090

ECLASS 13.0:

27069090

ECLASS 14.0:

27069090

ECLASS 15.0:

27069090

ETIM 5.0:

EC001855

ETIM 6.0:

EC001855

ETIM 7.0:

EC001855

ETIM 8.0:

EC001855

ETIM 9.0:

EC001855

ETIM 10.0:

EC001855
