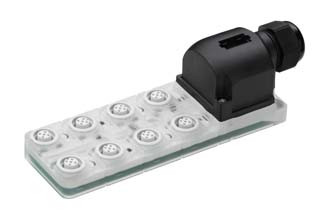

Leuze MD 7XXP-11-82IO5-FK Industrial Sensor System
Leuze
$118.00
The MD 7XXP-11-82IO5-FK is a precision industrial sensor engineered for demanding automation applications. Featuring IP65 protection and wide operating temperature range, it delivers reliable performance in manufacturing, logistics, and process control environments.
Technical Specifications:
Protection rating: IP65 (dust-protected, water-resistant)
Operating temperature: -20...70 °C
Technical Documentation:
Complete technical specifications, dimensional drawings, wiring diagrams, and safety documentation are available on the Leuze website at https://www.leuze.com/en-us/usa/products (search model MD 7XXP-11-82IO5-FK). CAD models in STEP and EPLAN formats available for download to streamline machine design and panel layout.
- Switching element:
- PNP
- Total current:
- ? 2 x 8 A
- Nominal input voltage UN:
- 24 V DC
- Type of connection:
- Terminal
- Function:
- Connection to the control
- No. of pins:
- 21 -pin
- Hood material:
- Polybutylene (PBT)
- Number of connections:
- 8 Piece(s)
- Thread size:
- M12
- No. of pins:
- 5 -pin
- Encoding:
- A-coded
- Type:
- Female
- Material:
- Plastic
- Material of O-ring seal:
- TPU
- Material of contacts:
- Gold-plated
- Operating current per contact:
- 4 A
- Design:
- Cubic
- Dimension (W x H x L):
- 50 mm x 15 mm x 150 mm
- Housing material:
- Plastic
- Net weight:
- 210 g
- Type of display:
- LED
- Ambient temperature, operation:
- -20 ... 70 °C
- Degree of protection:
- IP 65,IP 67
- Approvals:
- c UL US
- Customs tariff number:
- 85369010
- ECLASS 5.1.4:
- 27279201
- ECLASS 8.0:
- 27279219
- ECLASS 9.0:
- 27440108
- ECLASS 10.0:
- 27440108
- ECLASS 11.0:
- 27440108
- ECLASS 12.0:
- 27440108
- ECLASS 13.0:
- 27440108
- ECLASS 14.0:
- 27440108
- ECLASS 15.0:
- 27440108
- ETIM 5.0:
- EC002585
- ETIM 6.0:
- EC002585
- ETIM 7.0:
- EC003558
- ETIM 8.0:
- EC002585
- ETIM 9.0:
- EC002585
- ETIM 10.0:
- EC002585
- Datasheet:
- View
- Brochure:
- View
- Declaration of Conformity:
- View
