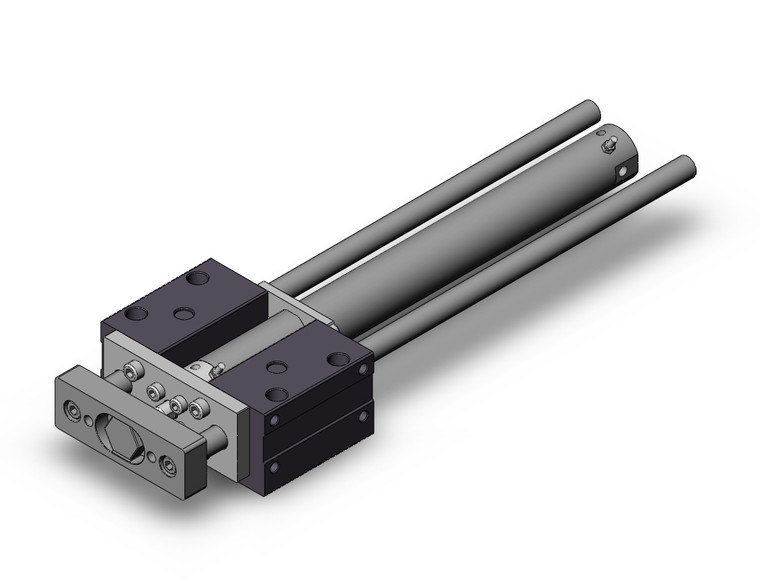

SMC MGCLB25-250 MGC Series Guide Cylinder Compact Type
SMC
$337.85
SMC MGCLB25-250 - MGC Series Compact Guide Cylinder, Ball Bushing, 25mm Bore, 250mm Stroke
The SMC MGCLB25-250 provides a 250mm stroke in a 25mm bore compact guided package, offering extended reach for mid-range transfer and positioning tasks. The MGC Series external guide rod design with ball bushing bearings ensures smooth, precision-guided actuation.
Key Features & Specifications
- 250mm stroke length - extended reach for mid-range positioning and transfer operations
- Ball bushing (L-type) - delivers stable, low-friction travel resistance
- External guide rods - load-bearing isolation protects piston rod seals from side loads
- Air cushions as standard - absorb kinetic energy at end of stroke
- Non-rotating accuracy: ±0.07° (25mm bore)
- Bore Size: 25mm | Stroke: 250mm | Rear Plate (B) Mount
Typical Applications
Excellent for conveyor transfers, part loading/unloading, and guided insertion applications in production environments that demand reliable mid-stroke guided motion.
Manufactured by SMC Corporation.
- Type:
- None
- Bearing Type:
- Ball Bushing Bearing
- Mounting Style:
- Basic Style
- Bore Size:
- Bore Size 25 mm
- Port Thread Type:
- M5X0.8,Rc
- Cylinder Stroke:
- Standard Stroke 250 mm
- Stroke Adjustment Symbol:
- None
- Dual Stroke Mark:
- Without Two Stroke Mark
- Cylinder Stroke 2:
- Without Cylinder Stroke 2
- Rear Plate:
- Without rear plate
- Auto Switch:
- Without Auto Switch
- Number Of Auto Switches:
- 2 pcs. Or None
- Auto Switch Mounting Bracket:
- None
- Made To Order:
- Standard
