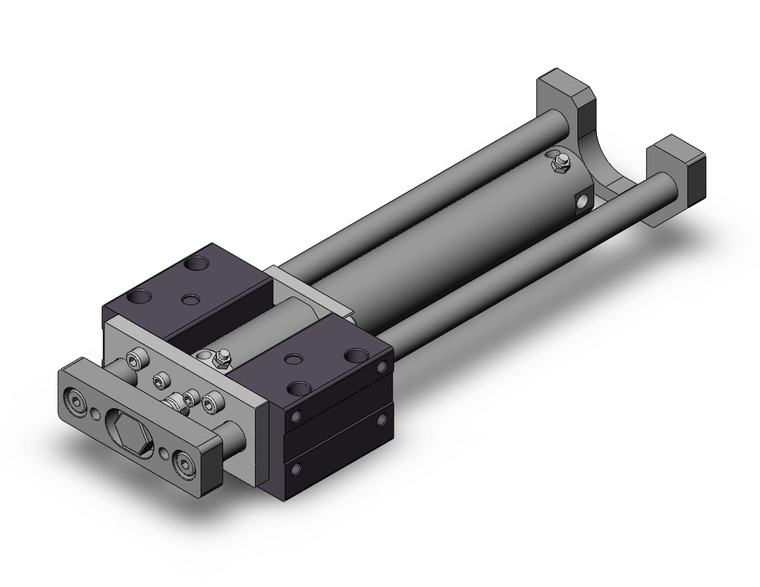

SMC MGCLB40-250-R MGC Series Guide Cylinder Compact Type
SMC
$532.65
SMC MGCLB40-250-R - MGC Series Compact Guide Cylinder, Ball Bushing, 40mm Bore, 250mm Stroke, Rubber Bumper
The SMC MGCLB40-250-R delivers high-force guided actuation with a 40mm bore and 250mm stroke, plus the rubber bumper (-R) option for cushioned end-of-stroke contact. This MGC Series compact guided cylinder is built for heavier payload applications requiring precise, non-rotating linear motion.
Key Features & Specifications
- 40mm bore - significantly higher force output for heavy-duty guided actuation tasks
- Rubber bumper (-R) - controlled deceleration protects machinery and payloads
- Ball bushing (L-type) - precision-guided linear motion with stable, smooth travel
- External guide rod design - load isolation extends seal and rod service life
- Air cushions standard - kinetic energy absorption at both stroke ends
- Bore Size: 40mm | Stroke: 250mm | Rear Plate (B) Mount | Rubber Bumper
Typical Applications
Designed for heavy-duty pressing, lifting, and transfer operations in automotive, electronics, and general manufacturing automation requiring higher force with cushioned guidance.
Manufactured by SMC Corporation.
- Type:
- None
- Bearing Type:
- Ball Bushing Bearing
- Mounting Style:
- Basic Style
- Bore Size:
- Bore Size 40 mm
- Port Thread Type:
- M5X0.8,Rc
- Cylinder Stroke:
- Standard Stroke 250 mm
- Stroke Adjustment Symbol:
- None
- Dual Stroke Mark:
- Without Two Stroke Mark
- Cylinder Stroke 2:
- Without Cylinder Stroke 2
- Rear Plate:
- With rear plate
- Auto Switch:
- Without Auto Switch
- Number Of Auto Switches:
- 2 pcs. Or None
- Auto Switch Mounting Bracket:
- None
- Made To Order:
- Standard
