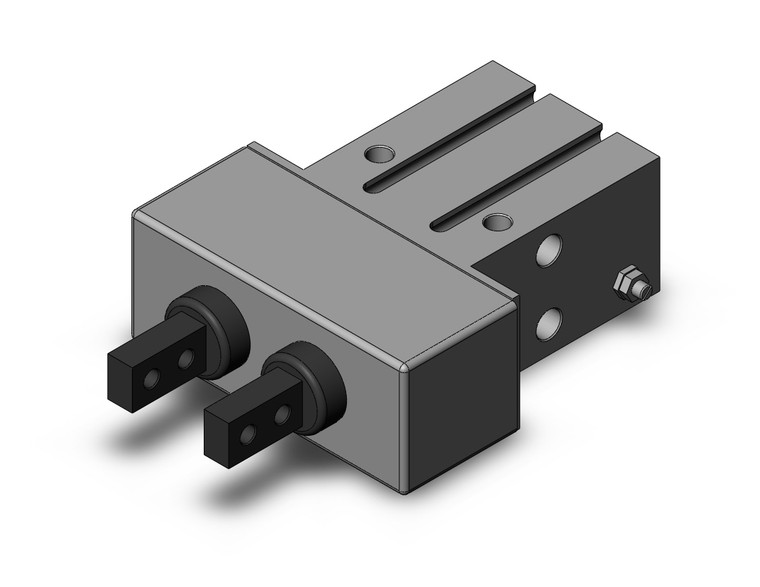

SMC MHKL2-16C MHK2 Series Wedge Cam Operation Slide Guide Air Gripper/2-Finger Type
SMC
$256.40
The SMC MHKL2-16C MHK2 Series Wedge Cam Operation Slide Guide Air Gripper is a versatile 2-finger type gripper designed for a wide range of applications. It features a wedge-shaped cam driving mechanism that ensures high rigidity and precision with its slide type guide. This air gripper is built to withstand challenging environments, offering dust-proof, drip-proof, and external force resistance. To accommodate various environmental conditions, it provides options for dust cover materials, including chloroprene rubber, fluororubber, and silicone rubber, as well as stainless steel (SUS304) fingers. Additionally, the gripper offers selectable long strokes, making it adaptable to different operational needs.
- Type:
- Long Stroke Type
- Bore Size:
- Bore Size 16 mm
- Action:
- Single Acting (Normally Closed)
- Finger Material:
- Carbon Steel
- Dust Cover Material:
- Chloroprene Rubber (CR)
- Auto Switch:
- Without Auto Switch
- Number Of Auto Switches:
- 2 pcs. Or None
- Made To Order:
- Standard
