Leuze

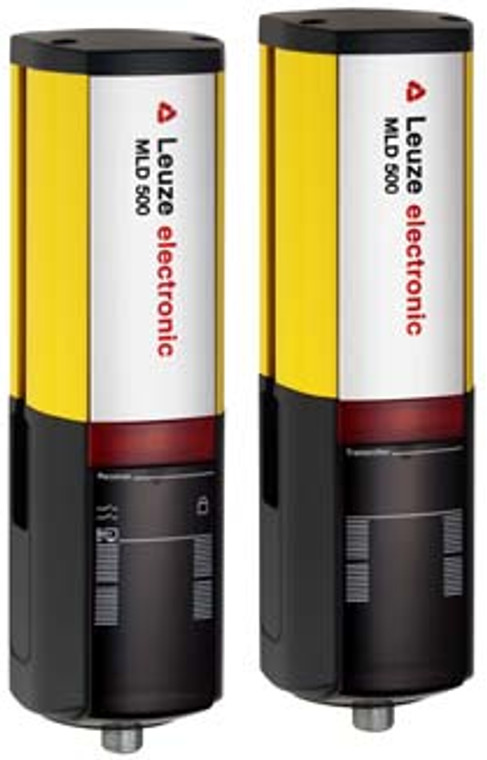

Leuze MLD510-R1L/A Single light beam safety device receiver

SKU:

MLD510-R1L/A

UPC:

MPN:

66536001

Condition:

New

Series:

MLD 500

Special version:

Reflective element for laser alignment aid

Functions:

Automatic restart

Type:

4, IEC/EN 61496

SIL:

3, IEC 61508

SILCL:

3, IEC/EN 62061

Performance Level (PL):

e, EN ISO 13849-1:2008

MTTFd:

204 years, EN ISO 13849-1

PFHD:

6.6E-09 per hour

Mission time:

20 years, EN ISO 13849-1

Category:

4, EN ISO 13849

Supply voltage UB:

26.5 ... 31.6 V

Current consumption from AS-i circuit:

140 mA

Response time:

30 ms

Restart delay time:

100 ms

Type:

AS-Interface Safety at Work

Function:

Process

AS-i profile:

S-7.B.1

Slave address:

1..31 programmable, default=0

Cycle time acc. to AS-i specifications:

Max. 5 ms ms

Number of connections:

1 Piece(s)

Function:

Machine interface

Type of connection:

Connector

Thread size:

M12

Material:

Metal

No. of pins:

5 -pin

Design:

Cubic

Dimension (W x H x L):

52 mm x 193 mm x 64.7 mm

Housing material:

Metal

Metal housing:

Aluminum

Lens cover material:

Plastic / PMMA

Material of end caps:

Diecast zinc

Net weight:

600 g

Housing color:

Yellow, RAL 1021

Type of fastening:

Groove mounting,Swivel mount

Type of display:

LED

Number of LEDs:

2 Piece(s)

Ambient temperature, operation:

-30 ... 55 °C

Ambient temperature, storage:

-40 ... 75 °C

Relative humidity (non-condensing):

0 ... 95 %

Degree of protection:

IP 67

Protection class:

III

Approvals:

TÜV Süd,c CSA US,c TÜV NRTL US

US patents:

US 6,418,546 B,US 7,741,595 B

Customs tariff number:

85365019

ECLASS 5.1.4:

27272701

ECLASS 8.0:

27272701

ECLASS 9.0:

27272701

ECLASS 10.0:

27272701

ECLASS 11.0:

27272701

ECLASS 12.0:

27272701

ECLASS 13.0:

27272701

ECLASS 14.0:

27272701

ECLASS 15.0:

27272701

ETIM 5.0:

EC001831

ETIM 6.0:

EC001831

ETIM 7.0:

EC001831

ETIM 8.0:

EC001831

ETIM 9.0:

EC001831

ETIM 10.0:

EC001831

Datasheet:

View

Brochure:

View

Declaration of Conformity:

View
