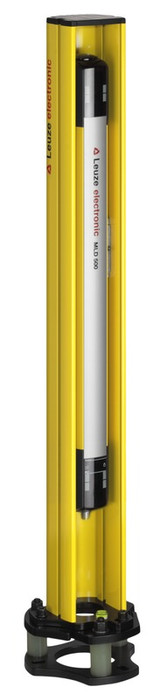

Leuze MLD520-RT2-UDC-1900-S2 Safety sensor/transceiver set
Leuze
$1,335.03
(No reviews yet)
Write a Review
Write a Review
Leuze
Leuze MLD520-RT2-UDC-1900-S2 Safety sensor/transceiver set
MLD520-RT2-UDC-1900-S2 Safety sensor/transceiver set
- Series:
- MLD-UDC
- Device type:
- Transceiver
- Functions:
- Configuration by means of wiring,Contactor monitoring (EDM), selectable,Start/restart interlock (RES), selectable
- Integrated laser alignment aid:
- No
- Integrated muting indicator:
- No
- Integrated status indicator:
- No
- Type:
- 4, IEC/EN 61496
- SIL:
- 3, IEC 61508
- SILCL:
- 3, IEC/EN 62061
- Performance Level (PL):
- e, EN ISO 13849-1
- PFHD:
- 6.6E-09 per hour
- Mission time:
- 20 years, EN ISO 13849-1
- Category:
- 4, EN ISO 13849
- Operating range:
- 0.5 ... 8 m
- Number of beams:
- 2 Piece(s)
- Beam spacing:
- 500 mm
- With device column:
- Yes
- Column height without foot:
- 1,900 mm
- Customs tariff number:
- 85365019
- ECLASS 5.1.4:
- 27272703
- ECLASS 8.0:
- 27272703
- ECLASS 9.0:
- 27272703
- ECLASS 10.0:
- 27272703
- ECLASS 12.0:
- 27272703
- ECLASS 13.0:
- 27272703
- ECLASS 14.0:
- 27272703
- ECLASS 15.0:
- 27272703
- ETIM 5.0:
- EC001832
- ETIM 6.0:
- EC001832
- ETIM 7.0:
- EC001832
- ETIM 8.0:
- EC001832
- ETIM 9.0:
- EC001832
- ETIM 10.0:
- EC001832
- Datasheet:
- View
- Declaration of Conformity:
- View
