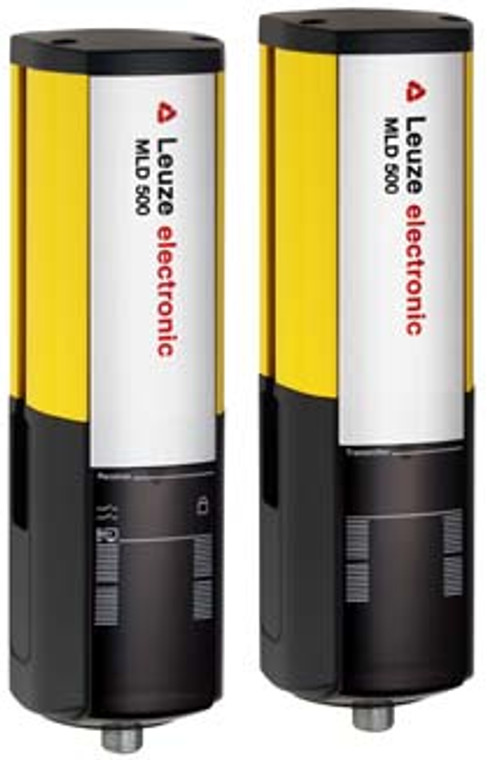

Leuze MLD530-R1 Industrial Sensor System
Leuze
$906.00
The MLD530-R1 is a precision industrial sensor engineered for demanding automation applications. Featuring IP67 protection and wide operating temperature range, it delivers reliable performance in manufacturing, logistics, and process control environments.
Technical Specifications:
Protection rating: IP67 (dust-tight, water-resistant for washdown environments)
Operating temperature: -30...55 °C (extended cold storage rating)
Technical Documentation:
Complete technical specifications, dimensional drawings, wiring diagrams, and safety documentation are available on the Leuze website at https://www.leuze.com/en-us/usa/products (search model MLD530-R1). CAD models in STEP and EPLAN formats available for download to streamline machine design and panel layout.
- Series:
- MLD 500
- Functions:
- Alternative connection for second muting signal,Configuration by means of wiring,Contactor monitoring (EDM), selectable,Muting-timeout extension,Muting enable function,Sequence controlled 2-sensor muting,Start/restart interlock (RES),Timing controlle
- Type:
- 4, IEC/EN 61496
- SIL:
- 3, IEC 61508
- SILCL:
- 3, IEC/EN 62061
- Performance Level (PL):
- e, EN ISO 13849-1
- MTTFd:
- 204 years, EN ISO 13849-1
- PFHD:
- 6.6E-09 per hour
- Mission time:
- 20 years, EN ISO 13849-1
- Category:
- 4, EN ISO 13849
- Selection of operating mode:
- Connection 1, pin 2: +24 V for operating mode 1, 2, 4,Connection 1, pin 2: 0 V for operating mode 3, 5, 6,Connection 1, pin 7: +24 V for operating mode 3, 5, 6,Connection 1, pin 7: 0 V for operating mode 1, 2, 4
- Protective circuit:
- Overvoltage protection,Short circuit protected
- Supply voltage UB:
- 24 V, DC, -20 ... 20 %
- Current consumption, max.:
- 150 mA, Without external load
- Fuse:
- External with max. 3 A
- Number of digital switching inputs:
- 4 Piece(s)
- Type:
- Digital switching input
- Switching current, max.:
- 5 mA
- Number of safety-related switching outputs (OSSDs):
- 2 Piece(s)
- Number of digital switching outputs:
- 1 Piece(s)
- Type:
- Safety-related switching output OSSD
- Current load, max.:
- 380 mA
- Load inductivity:
- 2,200,000 µH
- Load capacity:
- 0.3 µF
- Residual current, max.:
- 0.2 mA
- Residual current, type.:
- 0.002 mA
- Voltage drop:
- 1 V
- Switching principle:
- +24 V switching
- Function:
- "State of OSSDs" signal output
- Response time:
- 50 ms
- Restart delay time:
- 100 ms
- Number of connections:
- 2 Piece(s)
- Function:
- Machine interface
- No. of pins:
- 8 -pin
- Function:
- Local interface
- No. of pins:
- 5 -pin
- Permissible conductor cross section, type.:
- 0.25 mm²
- Length of connection cable, max.:
- 100 m
- Permissible cable resistance to load, max.:
- 200 ?
- Design:
- Cubic
- Dimension (W x H x L):
- 52 mm x 193 mm x 64.7 mm
- Housing material:
- Metal
- Metal housing:
- Aluminum
- Lens cover material:
- Plastic / PMMA
- Material of end caps:
- Diecast zinc
- Net weight:
- 600 g
- Housing color:
- Yellow, RAL 1021
- Type of fastening:
- Groove mounting,Swivel mount
- Type of display:
- 7?segment display,LED
- Number of LEDs:
- 2 Piece(s)
- Ambient temperature, operation:
- -30 ... 55 °C
- Ambient temperature, storage:
- -40 ... 75 °C
- Relative humidity (non-condensing):
- 0 ... 95 %
- Degree of protection:
- IP 67
- Protection class:
- III
- Approvals:
- TÜV Süd,c TÜV NRTL US,c UL US
- US patents:
- US 6,418,546 B,US 7,741,595 B
- Customs tariff number:
- 85365019
- ECLASS 5.1.4:
- 27272701
- ECLASS 8.0:
- 27272701
- ECLASS 9.0:
- 27272701
- ECLASS 10.0:
- 27272701
- ECLASS 11.0:
- 27272701
- ECLASS 12.0:
- 27272701
- ECLASS 13.0:
- 27272701
- ECLASS 14.0:
- 27272701
- ECLASS 15.0:
- 27272701
- ETIM 5.0:
- EC001831
- ETIM 6.0:
- EC001831
- ETIM 7.0:
- EC001831
- ETIM 8.0:
- EC001831
- ETIM 9.0:
- EC001831
- ETIM 10.0:
- EC001831
