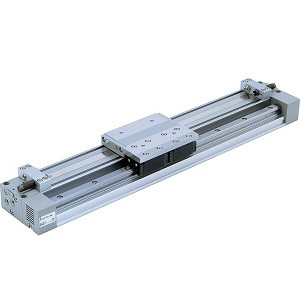

SMC MY1H16-300L-XC56 MY1H Series Mechanically Jointed Rodless Cylinder High Precision Guide Type

SMC MY1H16-300L-XC56 MY1H Series Mechanically Jointed Rodless Cylinder High Precision Guide Type

SMC
SKU:
MY1H16-300L-XC56
Availability:
Factory stock
$635.10
Condition:
New
Current Stock:
Description

MY1H Series Mechanically Jointed Rodless Cylinder High Precision Guide Type

  • Stable suction position, Improved ease of removal;
  • Pad form: Flat type with groove, Bellows type with ribs and groove;
  • Mounting: Male thread, Female thread;
  • Vacuum inlet direction: Vertical, Lateral;
  • Vacuum inlet: Male thread, Female thread;
  • Buffer Without, With;?[Buffer stroke [mm]: 10, 30, 50]
    • Additional Information
    Bore Size:
    Bore Size 16 mm
    Port Thread Type:
    M Thread(10 To 20),Rc(25 To 40)
    Piping:
    Standar
    Cylinder Stroke:
    Standard Stroke 300 mm
    Stroke Adjusting Unit Symbol:
    Left Side:L With Low Load Shock Absorber+Adjustment Bolt,Right Side:L With Low Load Shock Absorber+Adjustment Bolt
    End Lock Position:
    Without End Lock
    Auto Switch:
    Without Auto Switch (With Built-in Magnet)
    Number Of Auto Switches:
    2 pcs. Or None
    Made To Order:
    With Knock Pin Holes
