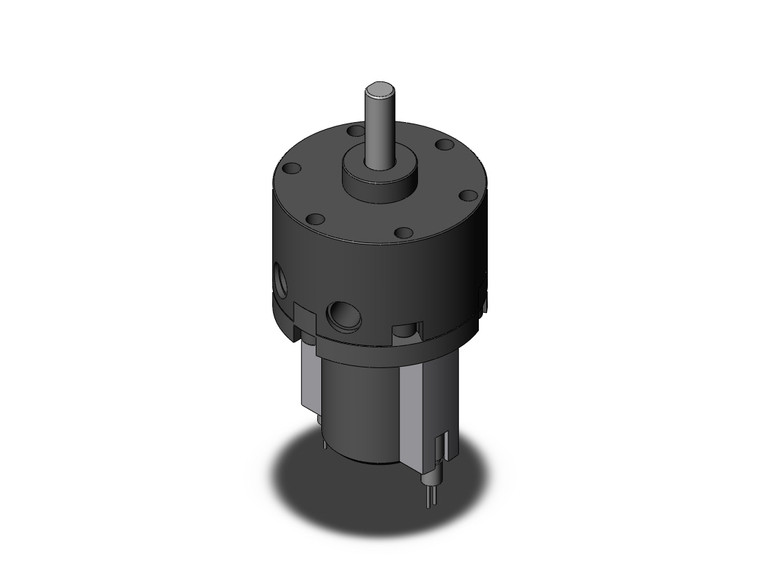

SMC NCDRB1BW15-180S-90A Rotary Actuator

SMC
SKU:
NCDRB1BW15-180S-90A
Availability:
Factory stock
$161.70
Condition:
New
Current Stock:

the ncrb single vane, double shaft style rotary actuator is available in 7 sizes (10-30mm). rotation angles of up to 270 is possible for the entire series. the ncrb series offers smooth, step-free operation and long life expectancies in rugged service applications. optional auto switches are available.

  • light weight and compact size
  • high reliability and long life
  • mountable with auto switch
  • 2 porting variations (top and side)
  • ball bearing supported shaft

Magnet:
Yes
Mounting:
Basic
Body Size:
15mm
Rotation Angle:
Rotation Angle: 180, Vane Style: Single
Port:
Body Side
Auto Switch:
90A--Reed, DC Volt, AC Volt, LED, Horizontal, 0.5M
