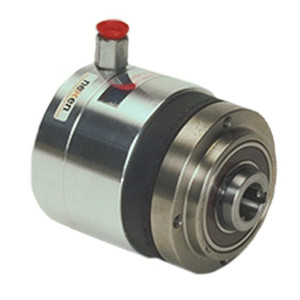

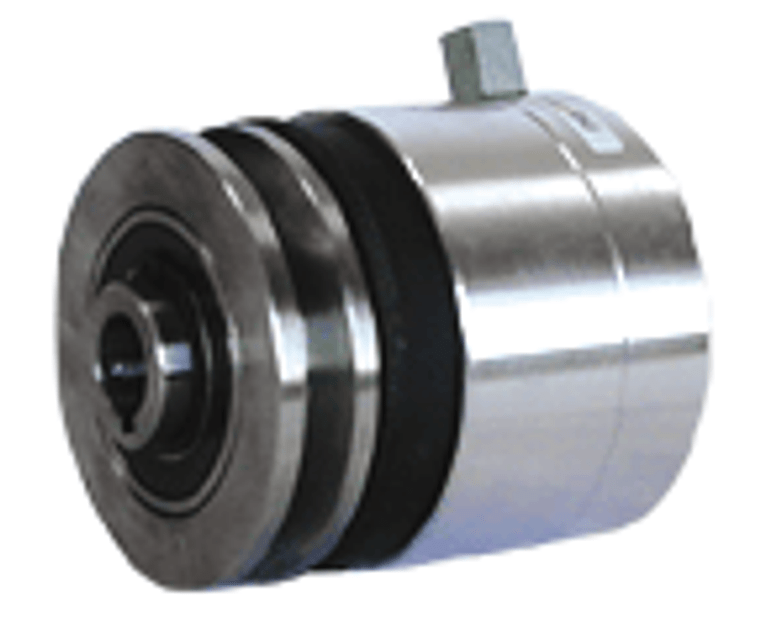

Nexen 800000 Air Engaged Through Shaft Mount Clutch
NexenAir Engaged Through Shaft Mount Clutch
BW*0.625,1-3V GRV,02.75 OD
Air Engaged, Keyed, Straight Bore, Shaft Mount
Obsolete Notes: Repair and Facing Kits have changed. For BW units made before serial number 3786748 (dated 9/6/23) that require a repair kit or facing kit, a new BW unit will need to be purchased. Repair and Facing Kits available for BW units made after serial number 3786748 (dated 9/6/23). Configuration Notes: Consider Pt# 802873, Air Champ 2, That Is A Direct Replacement Upgrade For This Product
Length=3.51 in; Outer Diameter=2.89 in; Input Bore Min Shaft Insertion=1.50 in, From Pilot End Full From Air Chamber End; Bore Size=0.625 in, Machined Bore with Keyway, 0.500 in with Optional Adapter Bushings
Product Features=Air Engaged, Keyed, Straight Bore, Shaft Mount; Restrictions=This Clutches Bore Can Be Reduced With The Bushings Found In Accessories To The Left
- Weight:
- 3.6 lbs
- Output Type:
- V-Belt Pulley, 1-3V, 2.75 in OD Sheave
- Mounting Style:
- Shaft
- Engagement Method:
- Air
- Release Method:
- Spring
- Max Speed:
- 3600 RPM
- Drive Inertia:
- 0.86 lbin²
- Shaft Inertia:
- 0.98 lbin²
- Open Or Enclosed Design:
- Open
- Primary Finish:
- Black Oxide
- Min Ambient Temperature:
- 32 °F
- Max Ambient Temperature:
- 150 °F
- CE Certified:
- CE
- RoHS Compliant:
- RoHS
- Bore Details:
- Straight
- Max Static Clutch Torque:
- 100 inlb
- Clutch Facing Type:
- Standard Coefficient
- Clutch Facing Edge Color Code:
- Red
- Approximate Clutch Facing Life:
- 33 hphr
- Clutch Facing Effective Area:
- 4.17 in²
- Max Clutch Continuous Thermal Dissipation:
- 0.13 hp
- Clutch Heat Sink Capacity:
- 5650 ftlb
- Clutch Peak Thermal Input Rate:
- 3.80 hp
- Max Operating Pressure:
- 80 psi
- Min Engagement Pressure:
- 8 psi
- Inlet Size:
- 0.125 NPT
- Hose Length:
- 8.25 in
- Bore Style:
- Machined Bore with Keyway, Nexen Adapter Bushing Required
- Clutch Air Chamber Volume When New:
- 0.201 in³
- Clutch Air Chamber Volume When Worn Out:
- 0.630 in³
- Materials Of Construction:
- Black Oxide
- Output Shaft Style:
- None
