Description

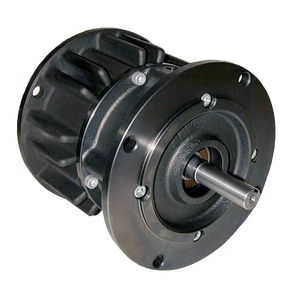

FMCBES Spring Engaged C/B FMCBES-625 0.625,HCO-N.P.
View AllClose
Input Frame Size: | 56C |
Output Frame Size: | 56C |
Open Or Enclosed Design: | Enclosed |
Bore Style: | Straight Bore/Shaft |
Clutch Facing Type: | High Coefficient |
Clutch Facing Edge Color Code: | Purple |
Brake Facing Type: | High Coefficient |
Brake Facing Edge Color Code: | Purple |
Maximum Static Clutch Torque: | 232 inlbs |
Maximum Static Brake Torque: | 142 inlbs |
Combined Continuous Thermal Dissipation: | 0.14 hp |
Clutch Peak Thermal Input Rate: | 7.00 hp |
Brake Peak Thermal Input Rate: | 7.00 hp |
Overhung Load Capacity: | "92 @ 1800/138 @ 1200 (lb@RPM), 1.1 in. From Pilot Face, For 10,000 Hrs Bearing Life" |
Drive Inertia: | 6.20 lbin² |
Shaft Inertia: | 7.10 lbin² |
Max Rpm: | 1800 |
Output Shaft Diameter: | 0.625 in. |
Actuation/Return: | Air/Spring |
Port Size: | 0.125 NPT |
Maximum Operating Pressure: | 80 psi |
Minimum Engagement Pressure: | 34 psi |
Minimum Release Pressure: | 22 psi |
Temperature Range: | 32 - 150 °F |
Approximate Clutch Facing Life: | 197 hphr |
Approximate Brake Facing Life: | 197 hphr |
Clutch Air Chamber Volume When New: | 1.755 in³ |
Clutch Air Chamber Volume When Worn Out: | 2.495 in³ |
Ratings: | "CE, And RoHS" |
Finish: | Nickel Plated |
Restrictions: | Consult Nexen For Use In Cyclic Applications |
See Accessories For Optional Input Shafts And Feet For Foot Mounted Applications | |
Shipping Weight: | 39.9 LB |
