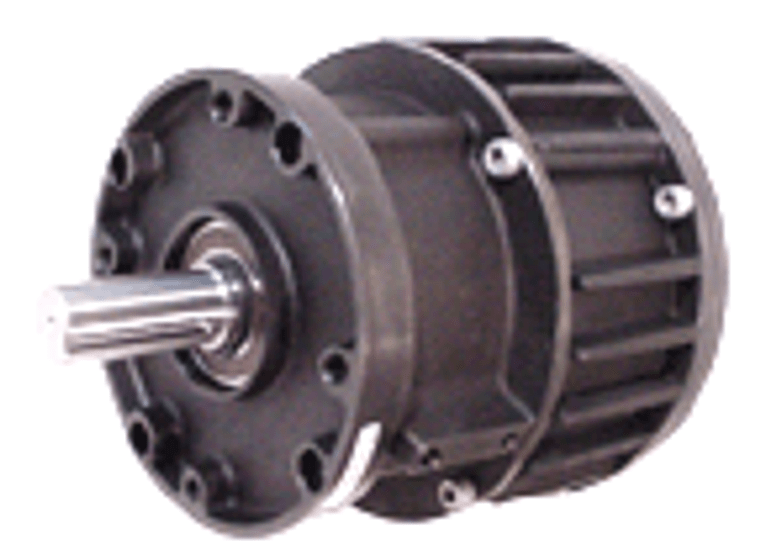

Nexen 801690 FMCBES Spring Engaged C/B FMCBES-625 0.625,HCO,W/LOCKING KEY

Nexen 801690 Motor/Reducer Mount Clutch-Brake

Nexen
SKU:
801690
Availability:
Contact us to confirm availability and lead times.
$1,516.00
Condition:
New
Current Stock:
Description

Motor/Reducer Mount Clutch-Brake



FMCBES-625*0.625,HCO,W/LOCKING KEY

Spring Engaged Brake, Air Engaged Clutch, Flange Mount, Foot Mount Capable, Enclosed Housing

Locking Key Feature Reduces Output Keyway Problems In High Cycle Rate Applications See Accessories For Optional Input Shafts And Feet For Foot Mounted Applications

Bore Size=Machined Bore with Keyway; Input Bore Diameter=0.625 in; Output Shaft Diameter=0.625 in; Output Bore Diameter=0.625 in

Product Features=Spring Engaged Brake, Air Engaged Clutch, Flange Mount, Foot Mount Capable, Enclosed Housing; Restrictions=Consult Nexen For Use In Cyclic Applications
Additional Information
Weight:
40 lbs
Mounting Style:
Foot, Motor or Reducer
Anti Rotation Style:
Flange, Optional Feet
Max Speed:
1800 RPM
Overhung Load Capacity:
92 lbs, At 1800 RPM/138 lbs 1200 RPM, 1.1 in From Pilot Face, For 10,000 Hrs Bearing Life
Drive Inertia:
6.2 lbin²
Shaft Inertia:
7.1 lbin²
Open Or Enclosed Design:
Enclosed
Primary Finish:
Black Oxide
Min Ambient Temperature:
32 °F
Max Ambient Temperature:
150 °F
CE Certified:
CE
RoHS Compliant:
RoHS
Input Frame Size:
NEMA 56C
Output Frame Size:
NEMA 56C
Bore Details:
Straight Bore/Shaft
Max Static Clutch Torque:
232 inlb
Max Static Brake Torque:
142 inlb
Brake Torque:
142 inlb
Clutch Facing Type:
High Coefficient
Clutch Facing Edge Color Code:
Purple
Approximate Clutch Facing Life:
197 hphr
Clutch Facing Effective Area:
7.66 in²
Brake Facing Type:
High Coefficient
Brake Facing Edge Color Code:
Purple
Approximate Brake Facing Life:
197 hphr
Brake Facing Effective Area:
7.7 in²
Combined Continuous Thermal Dissipation:
0.14 hp
Clutch Peak Thermal Input Rate:
7.00 hp
Brake Peak Thermal Input Rate:
7.00 hp
Max Allowable Pressure:
8.3 bar
Max Operating Pressure:
80 psi
Min Engagement Pressure:
34 psi
Min Release Pressure:
22 psi
Inlet Size:
0.125 NPT
Bore Style:
Machined Bore with Keyway
Clutch Air Chamber Volume When New:
1.755 in³
Clutch Air Chamber Volume When Worn Out:
2.495 in³
Materials Of Construction:
Black Oxide
Output Shaft Style:
Shaft with Locking Key
Clutch Side Engagement Method:
Air
Brake Side Engagement Method:
Spring
