Description

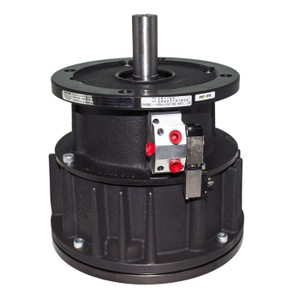

FMCBE - Locking Key FMCBE-1125 LOCKING KEY,PF
View AllClose
| Features: | Locking Key Feature |
| Comments: | Locking Key Feature Reduces Output Keyway Problems In High Cycle Rate Applications |
| Input Frame Size: | "182TC, 184TC" |
| Output Frame Size: | "182TC, 184TC" |
| Open Or Enclosed Design: | Enclosed |
| Bore Style: | Straight Bore/Shaft |
| Clutch Facing Type: | Standard Coefficient |
| Clutch Facing Edge Color Code: | Red |
| Brake Facing Type: | Standard Coefficient |
| Brake Facing Edge Color Code: | Red |
| Maximum Static Clutch Torque: | 575 inlbs |
| Maximum Static Brake Torque: | 685 inlbs |
| Combined Continuous Thermal Dissipation: | 0.33 hp |
| Combined Heat Sink Capacity: | 14100 ftlb |
| Clutch Peak Thermal Input Rate: | 21.00 hp |
| Brake Peak Thermal Input Rate: | 21.00 hp |
| Overhung Load Capacity: | None |
| Drive Inertia: | 24.20 lbin² |
| Shaft Inertia: | 30.30 lbin² |
| Max Rpm: | 1800 |
| Output Shaft Diameter: | 1.125 in. |
| Actuation/Return: | Air/Air |
| Port Size: | 0.125 NPT |
| Maximum Operating Pressure: | 80 psi |
| Temperature Range: | 32 - 150 °F |
| Approximate Clutch Facing Life: | 929 hphr |
| Approximate Brake Facing Life: | 929 hphr |
| Clutch Air Chamber Volume When New: | 2.610 in³ |
| Clutch Air Chamber Volume When Worn Out: | 3.738 in³ |
| Brake Air Chamber Volume When New: | 3.050 in³ |
| Brake Air Chamber Volume When Worn Out: | 4.377 in³ |
| Ratings: | "CE, And RoHS" |
| Finish: | Black Acrylic Paint |
| Restrictions: | Locking Key Output Shafts Can Only Be Inserted Into Reducers And Are Not For Pulley Or Coupling Mounting |
| See Accessories For Optional Input Shafts And Feet For Foot Mounted Applications | |
| Shipping Weight: | 66.5 LB |
